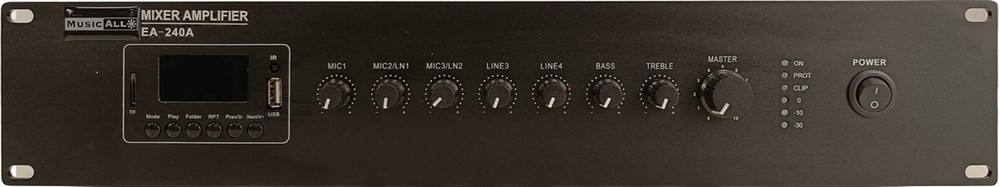

The EA-240A mixing amplifier is a 19” rack mountable PA & commercial audio mixer amplifier, which is designed with

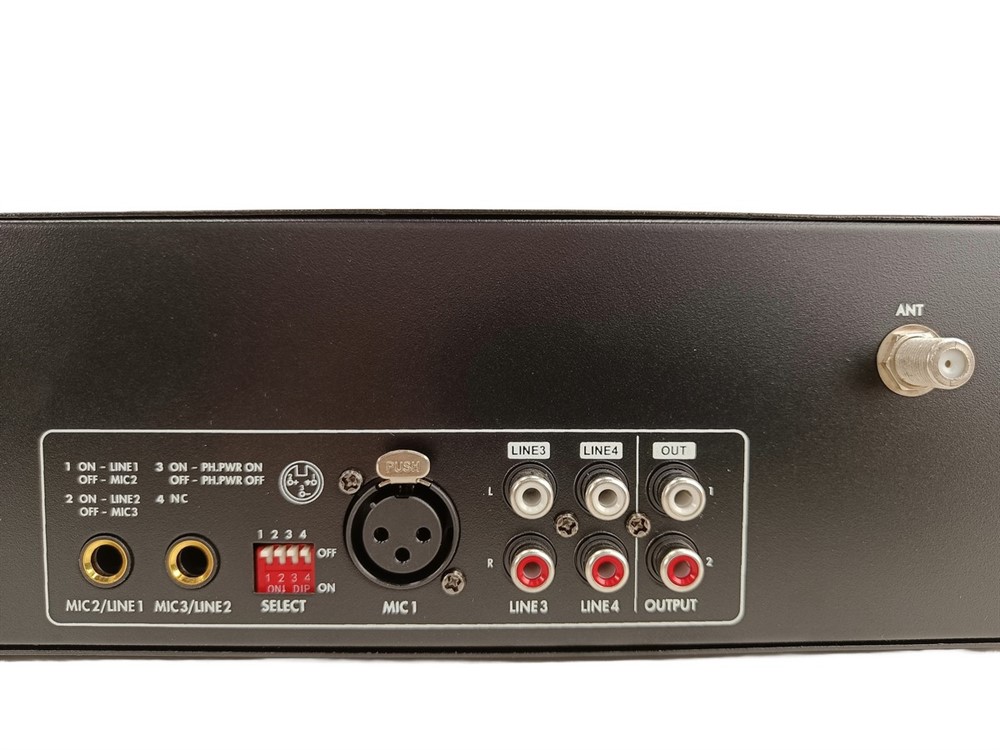

media player, pre-amplifier and power amplifier all in one. The built-in media player includes USB/SD, FM & Bluetooth for various background music system applicaons. Its rated power is 240W, 100V/70V & 4-16Ω outputs. The EA-240A mixer amplifier has 3 microphone / line inputs and 2 aux audio sources. Mix out RCA line output to connect a extra power amp. Input Mic1 has priority over other inputs and with +48V phantom power.
| Output power (RMS): |
240 W |
| Harmonic distortion (THD) at 1 kHz: |
Less than 0.5% |
| Signal to noise ratio: |
> 85 dB |
| Mic inputs: |
-50 dB ±3 dB, balanced |
| AUX channels: |
-30 dB ±3 dB, unbalanced |
| TEL-PAGING input: |
-21 dB ±3 dB |
| Tone controls: |
100 Hz, 10 kHz ±12 dB (±3 dB) |
| Frequency Response: |
60 Hz ~ 15 kHz (+1.5 dB / -3 dB) |
| Phantom Power: |
48 Vdc |

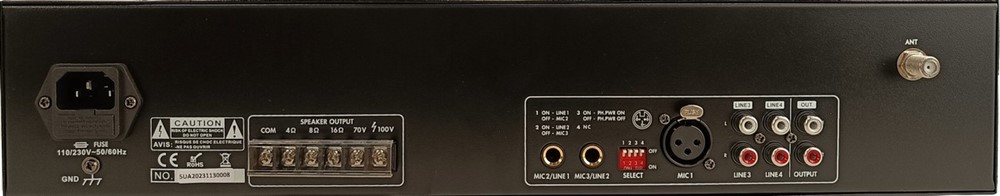

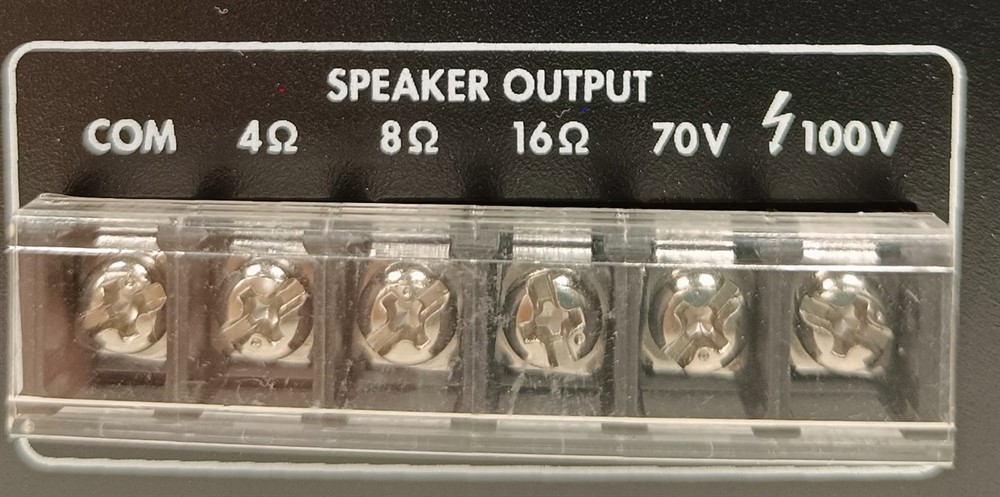

| Speaker Outputs: |
4 Ω, 8 Ω, 70 V & 100 V |
| Crosstalk at all control maximum: |
-70 dB at 1 kHz |
| Cooling: |
Convection cooled |
| Operating temperature: |
0 ~ 40 ºC at 95% humidity |
| Input Power: |
230 Vac 50-60 Hz |
| Consumption: |
310 W |
| Dimensions: |
270 x 76 x 230 mm |
| Net Weight: |
8,6 kg |
