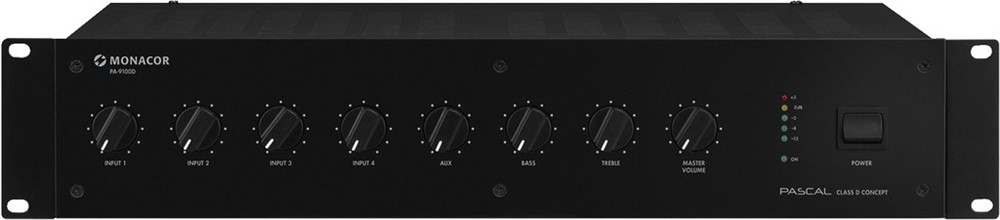

Mono class D PA mixing amplifier
- 1 x 1,000 W
- Class D concept with PASCAL amplifier module
- Energy-efficient concept due to high efficiency
- Lightweight design due to compact switch-mode power supply
- Silent operation due to fanless cooling concept
- 4 balanced mic/line inputs
- Mic 1 with priority circuit and automatic talkover
- Additional connection for desktop microphone via screw terminal
- 1 aux input
- Speaker outputs via screw terminals
- Line output
- Insert facility, e.g. for effect units, equalizers, feedback controllers
- Input level control and output level control
- 2-way tone control for the output
- 48 V phantom power supply for each microphone input, to be activated individually
- Limiter switch 4 O/8 O/100 V
- Removable mounting brackets
| Peak output power |
- |
| Power rating |
1,000 W |
| Power rating at 2 O |
- |
| Power rating at 4 O |
900 W |
| Power rating at 8 O |
1,000 W |
| Power rating at 16 O |
- |
| Power rating at 100 V |
1000 W/9.2 O |
| Power rating with 4 O bridged operation |
- |
| Power rating with 8 O bridged operation |
- |
| Output impedance |
4-8 O |
| Channels |
5 |
| Zones |
- |
| Inputs |
3 mV (mic),
200 mV (line),
140 mV (aux)
|
| Attenuation factor |
- |
| Frequency range |
20-20,000 Hz |
| Crossover network |
- |
| Crossover frequency |
- |
| Integrated limiter |
yes |
| Equalizer bass |
± 10 dB/100 Hz |
| Equalizer midrange |
- |
| Equalizer treble |
± 10 dB/10 kHz |
| S/N ratio |
> 80 dB |
| Crosstalk attenuation |
- |
| THD |
< 0.1% |
| Phantom power |
48 V |
| Mains voltage |
∼ 90-230 V |
| Mains frequency |
50-60 Hz |
| Power consumption, operation |
1,030 VA |
| Power consumption, standby |
- |
| Standby current |
- |
| Operating voltage (possible alternative) |
- |
| Power supply (possible alternative) |
- |
| Admiss. ambient temp. |
0-40 °C |
| Width |
482 mm |
| Height |
88 mm |
| Depth |
275 mm |
| Rack spaces, RS |
2 |
| Weight |
5.3 kg |

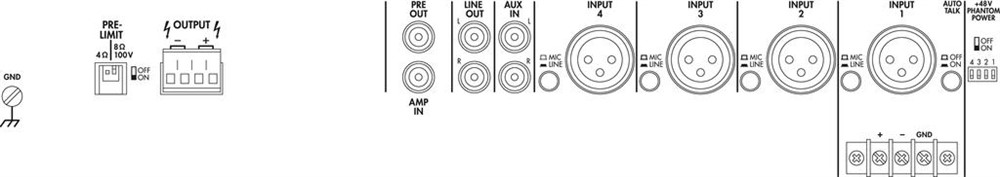

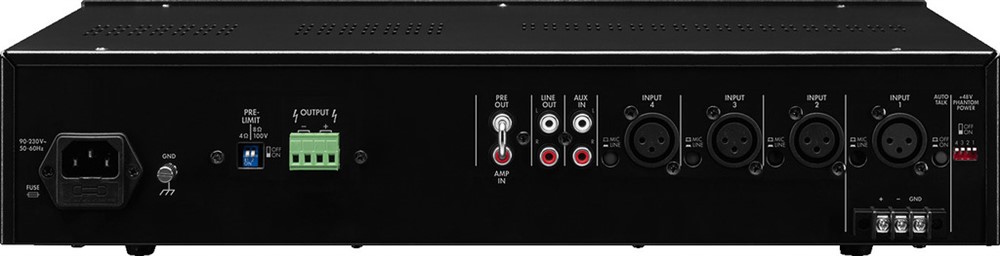

| Connections |
4 x XLR (mic/line),
1 x RCA L/R (aux),
screw terminals (speakers)
|
