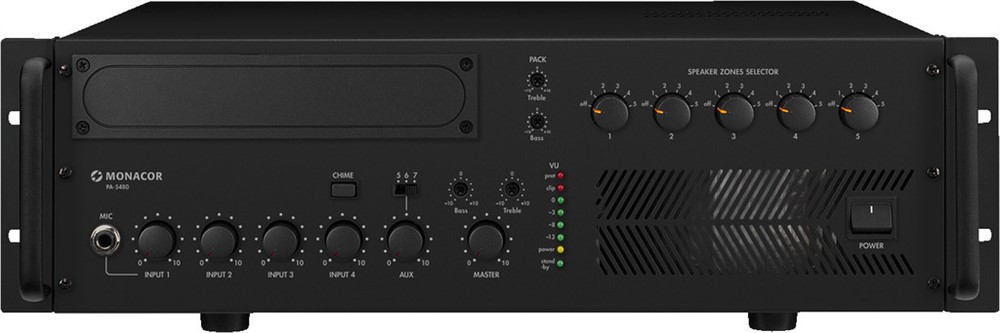

5-zone mono PA mixing amplifiers - 1 x 240WRMS (PA-5240)
- 1 x 480WRMS (PA-5480)
- 5 zones, can be controlled individually
- Chime, wailing sound, automatic mute, chime and siren can also be activated via external momentary push-button, 2-tone chime or 4-tone chime (selectable)
- Bass, treble and master controls, level display via LEDs, controlled fan
- Insertions for various functions are available at option
- Phantom power for electret microphones
- Connection for microphone PA-5000PTT
- Alarm announcement with insertion PA-1120DM (available at option)
- Mains operation and 24V emergency power operation
100V PROSOUND 03/2005 (PA-5480)
Workmanship and electronic features give a really solid impression."
| General Information | |
| Output power | 480WRMS |
| | 680WMAX |
| Inputs | |
| Mic 1 | 2.5mV/2k ohm |
| Mic/line 2-4 | 2.5mV/2k ohm, 0.3V/200k ohm |
| Line 5-7 | 0.3V/5k ohm |
| Preamplifier | 0.775V/10k ohm |
| Outputs | |
| Speakers | 100V/70V |
| Preamplifier | 0.775V/100 ohm |
| Frequency range | 55-16,000Hz |
| Tone control | |
| Bass | ±10dB/100Hz |
| Treble | ±10dB/10kHz |
| S/N ratio | |
| Mic | > 70dB |
| Line | > 80dB |
| THD | <1% |
| Admiss. ambient temp. | 0-40 °C |
| Power supply | 230V˜/50Hz/1,500VA, |
| | 24V DC current /40A |
| Dimensions | 482x133x352mm, 3RS |
| Weight | 20kg |

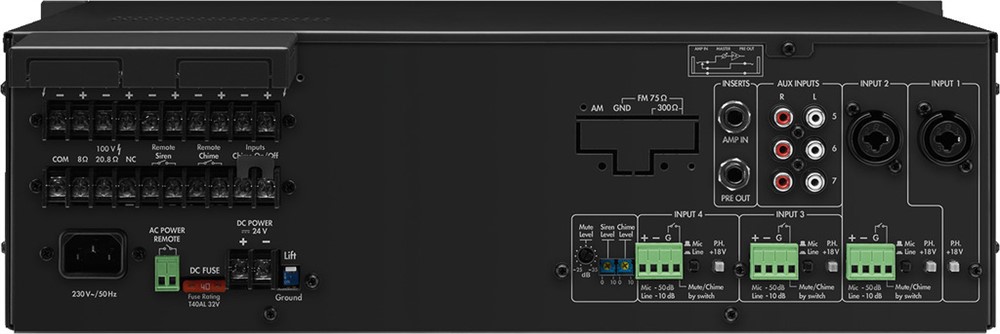

| Inputs | |
| Mic/line | 2 x 6.3mm/XLR (Combo), 1 x 6.3mm jack |
| Line | screw terminals, 3 x RCA L/R |
| Zone paging microphone | screw terminal |
| Push-to-talk microphone | screw terminal |
| Telephone | - |
| Preamplifier | 1 x 6.3mm jack |
| Outputs | |
| Chime mom. push-button | screw terminals |
| Preamplifier | 1 x 6.3mm jack |
| Speakers | screw terminals |
| Power supply | |
| 230V˜ | 3-pin IEC jack |
| 24V DC current | screw terminals |
