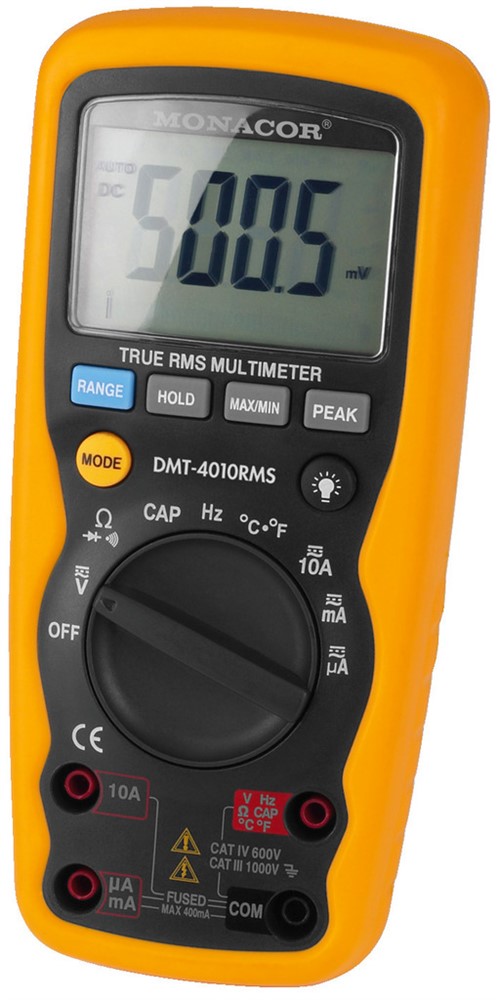

DMT-4010RMS

Digital Multimeter
292020
In stock
Product question

What would you like to know about DMT-4010RMS?

Send

Description

Digital multimeter, for professional applications.
  • True RMS measuring method
  • Protected against dust and water according to IP67 when test jacks are covered
  • Autoranging for faster measurements
  • Resolution: 4,000 digits
  • Additional bar graph display
  • Voltage measurement: up to 1,000 V DC current /˜
  • Current measurement: up to 10 A DC current /˜
  • Frequency measurement: up to 10 MHz
  • Resistance measurement: up to 40 MO
  • Capacitance measurement: up to 40 mF
  • Temperature measurement: -20 °C to +760 °C
  • Acoustic continuity test
  • Diode test
  • Data hold (storage of measured value)
  • Peak hold
  • Recording of max. value and min. value
  • LCD with selectable backlight
  • Automatic switch-off
  • Overload protection
  • Supplied with test leads and protective bag


Display21 mm LCD, 3¾ digits,

bar graph display

Range selectionautomatic,

manual

Voltage5 ranges

DC 400 mV-1,000 V

∿ 400 mV-1,000 V

Current5 ranges

DC 400 µA-10 A

∿ 400 µA-10 A

Resistance6 ranges

400 O-40 MO

Frequency4 ranges

4 kHz-10 MHz

Capacitance8 ranges

4 nF-40 mF

Temperature1 range

-20 °C to +760 °C

-4 °F to +1,400 °F

type K sensor

Battery test-
Admiss. ambient temp.-10 °C to +50 °C
Dimensions83 x 180 x 54 mm

incl. rubber holster

Weight430 g
Power supply9 V battery (not supplied)
Special featurespeak, min/max, hold, IP67
