ESP-315/WS

15W, 100V/8ohm
162870
In stock
Product question

What would you like to know about ESP-315/WS?

Send

Description

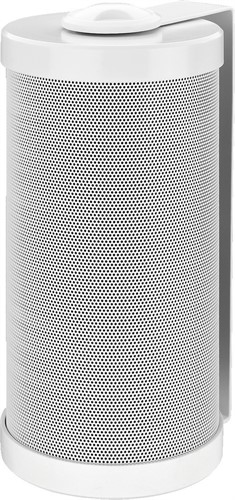

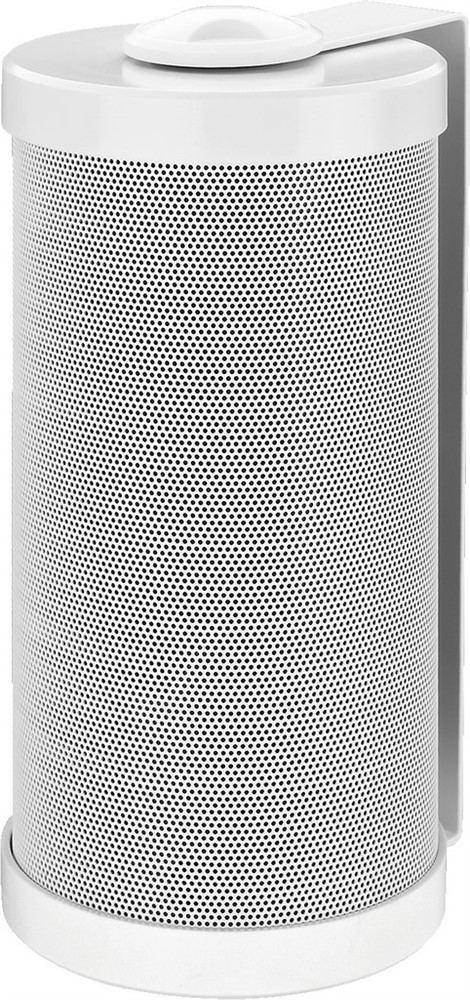

2-way PA wall-mount speaker system
  • 100 V PA speaker system with an excellent sound
  • 2-way system with 10x15 cm bass-midrange speaker and 13 mm dome tweeter
  • Power taps: 15/10/5/2.5 W
  • Power selector switch with 8 O operating position
  • Can be mounted horizontally or vertically
  • Direction of sound radiation can individually be aligned
  • Available in black (SW) or white (WS) plastic with respectively lacquered metal grille
  • Supplied with wall brackets


Active/passivepassive
Transmission method100 V
Total output power-
Power rating (RMS)-
Total power rating30 W
Power rating (RMS)15/10/5/2.5 W (100 V)

15 W (8 O)

Impedance8 O
Frequency range75-20,000 Hz
THD-
S/N ratio-
Input signal-
System2-way
Full range speaker-
Bass speaker-
Midrange speaker-
Tweeter-
Number of speakers2
Speaker size-
Sensitivity90 dB/W/m
Max. rated SPL-
Radiation angle, horizontal-
Radiation angle, vertical-
Features-
Housing materialplastic
Colourwhite
Mounting device-
Protected against ball rebound-
Protection class-
Admiss. ambient temp.0-40 °C
Power supply-
DimensionsØ 133 mm x 280 mm
WidthØ 133 mm
HeightØ 280 mm
Depth-
Weight2.1 kg
Inputsspring-load. speaker term.
Outputs-
Replacement voice coil-
Other features-
Accessories-
