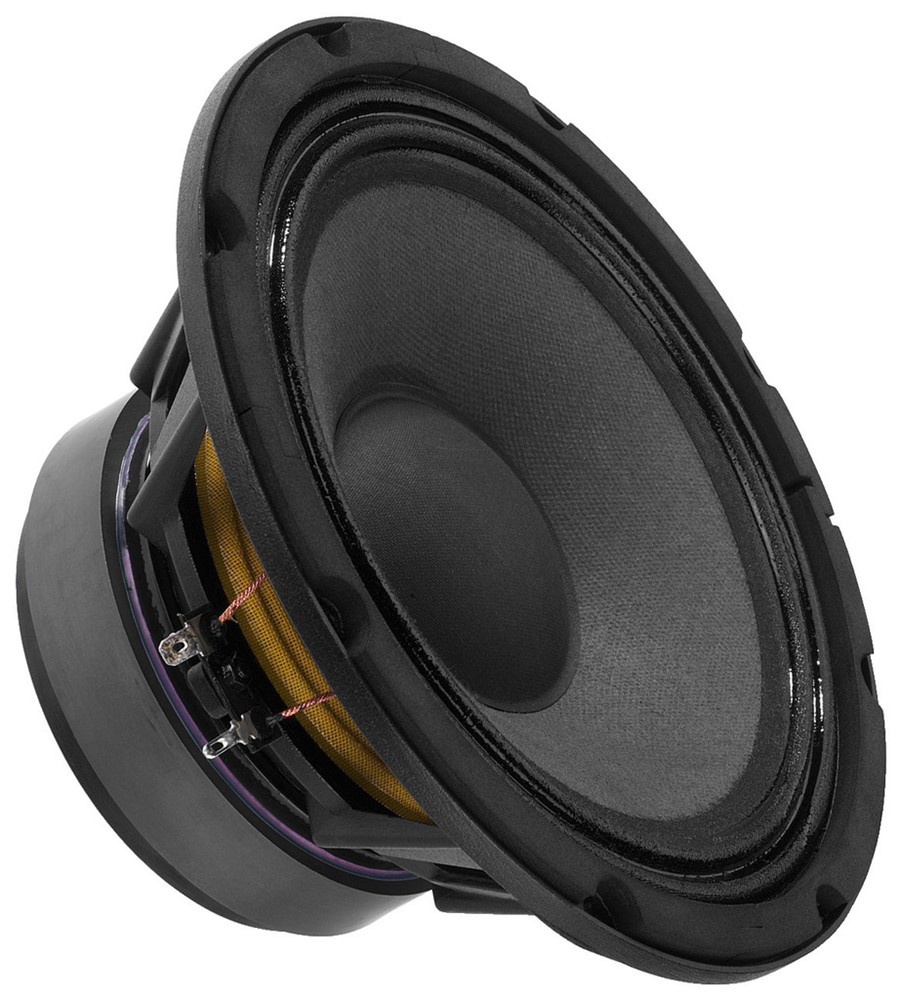

Professional PA bass speaker from IMG Stage Line. This exceptional speaker from the L-RAY bass module combines a high power cability, a good efficiency and an amazing mechanical stability in a format which at 20cm is of extra compact size. This makes it a real bass speaker for the limit frequencies which normally require 30cm (12") PA speakers.
Compact PA bass speaker, 300WMAX, 150WRMS, 8 ohm Professional bass and bass-midrange speaker of high power capability and an exceptional long excursion in a cabinet of compact size (20cm/8"). A very high manufacturing quality and the latest drive configuration with rear ventilation of the centering spider allow for a bass reproduction of both very low fundamental resonance and distortion but nevertheless with an efficiency which is far above average when combined with the exceptional X
MAX of ±6mm. The speaker with a stable cellulose cone and diecast basket can be used in very compact 2-way combinations both for full range applications and for setting up subwoofers of an amazingly compact size.
| Impedance (Z) | 8 ohm |
| Resonant frequency (fs) | 56Hz |
| Max. frequency range | f3-3,000Hz |
| Music power | 300WMAX |
| Power rating (P) | 150WRMS |
| SPL (1W/1m) | 93dB |
| Suspension compl. (Cms) | 0.35mm/N |
| Moving mass (Mms) | 22.8g |
| Mech. Q factor (Qms) | 1.52 |
| Electr. Q factor (Qes) | 0.41 |
| Total Q factor (Qts) | 0.32 |
| Equivalent volume (Vas) | 22 l |
| DC resistance (Re) | 7.2 ohm |
| Force factor (BxL) | 11.96 |
| Voice coil induct. (Le) | 2.0mH |
| Voice coil diameter | Ø 50mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ±6mm |
| Eff. cone area (Sd) | 213cm2 |
| Magnet weight | 30oz. |
| Weight | 1.9kg |
