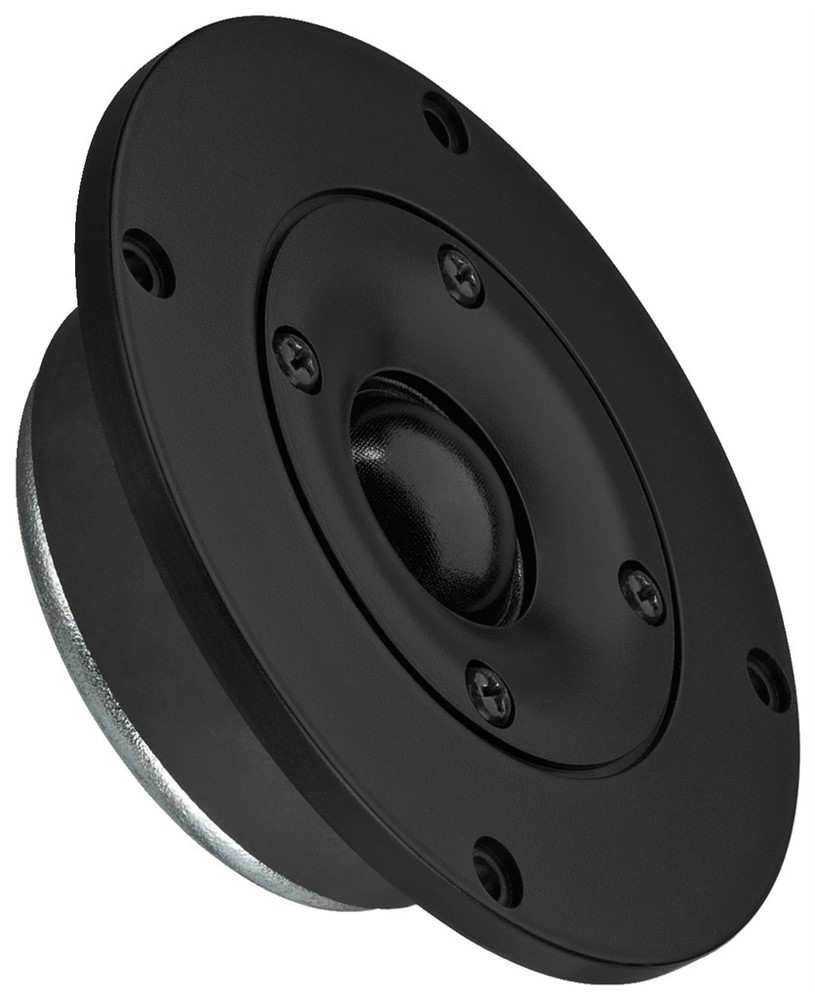

DTM-104/8

HiFi dome diskant, 45Wrms, 8ohm
105330
In stock
Product question

What would you like to know about DTM-104/8?

Send

Description

Hi-fi dome tweeters, 100 WMAX, 45 WRMS, 8 Ohm (/8) and 4 Ohm (/4)
  • Textile dome tweeter with Kapton voice coil former
  • Excellent radiation pattern due to waveguide
  • Very well-suited as a replacement for high-quality hi-fi speakers
Klang + Ton 01/2013
"What a great idea. The Cheap Trick 264 (with SPM-165/8 & DTM-104/8) wants to show that it is possible to actually provide great music at an attractive price ... and with any kind of music programme. It provides a reproduction of a comprehensive musical spectrum which is always a pleasure to listen to. With reliable material and a little care during assembly, you already get an all-round speaker which is absolutely suitable for practical operation."



Impedance (Z) 8 Ohm
Transmission method -

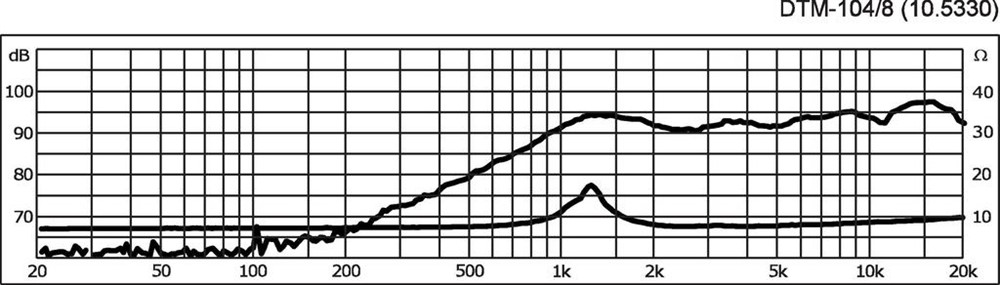

Frequency range fx-19,000 Hz
Resonant frequency (fs) 1,200 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 2,500 Hz
Power rating (RMS) 45 W
Peak music power output (MAX) 100 W
Sensitivity 92 dB/W/m
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal -
Radiation angle, vertical -
Suspension compl. (Cms) -
Moving mass (Mms) -
Mech. Q factor (Qms) -
Electr. Q factor (Qes) -
Total Q factor (Qts) -
Equivalent volume (Vas) -
DC resistance (Re) -
Force factor (BxL) -
Voice coil induct. (Le) -
Voice coil diameter Ø 25 mm
Voice coil former -
Linear excursion (XMAX) -
Eff. cone area (Sd) -
Magnet weight -

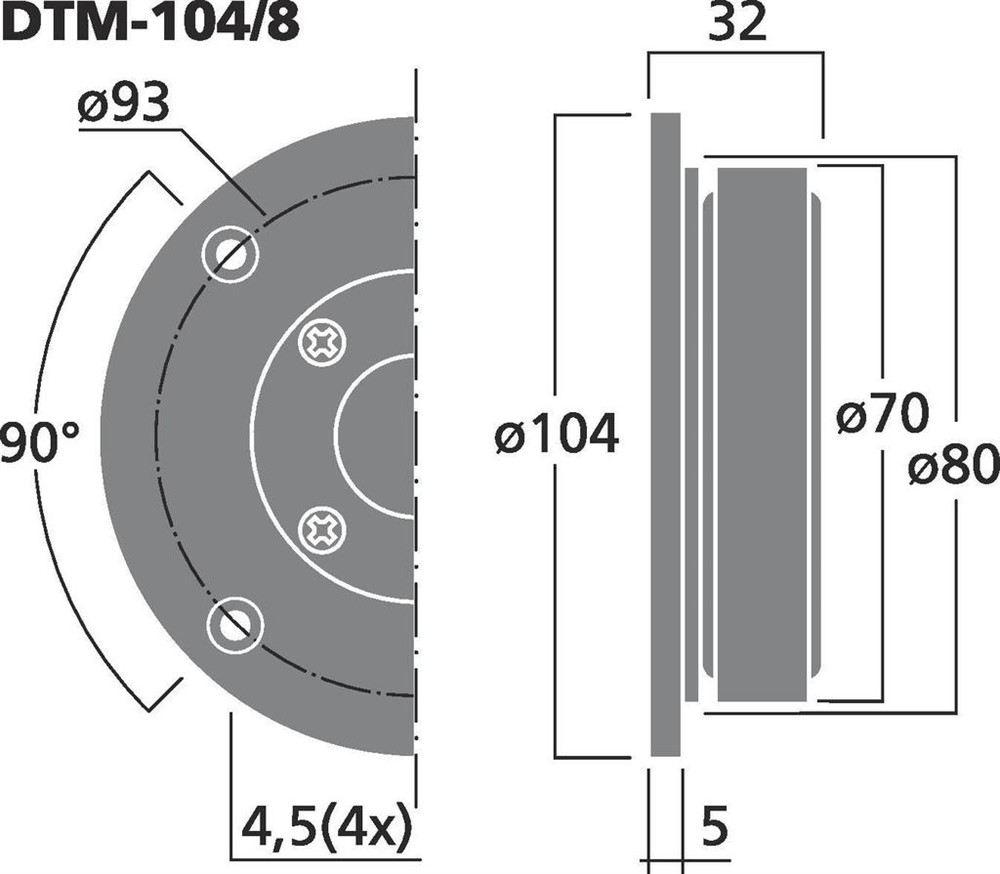

Magnet diameter Ø 70 mm
Mounting cutout Ø 80 mm
Mounting depth 29 mm
Mounting hole diameter -
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions Ø 104 x 32 mm
Outside diameter Ø 104 mm
Width Ø 104 mm
Height -
Depth 32 mm
Protective class -
Admiss. ambient temp. 0-40 °C
Weight 0.54 kg
Packing unit 1
Type of speaker -
