HT-22/8

2", 10Wrms, 8ohm
100180
In stock
Product question

What would you like to know about HT-22/8?

Send

Description

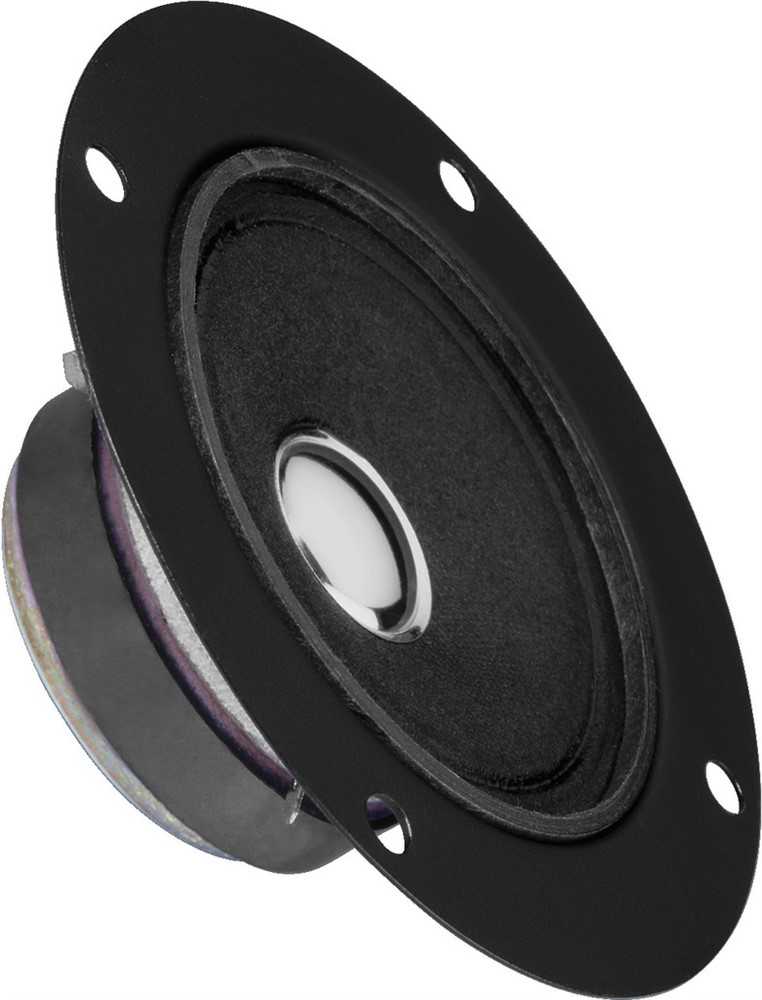

Cone tweeter, 20WMAX, 8 ohm

Classic tweeter for universal applications in HiFi, car HiFi and for replacement purposes.


Impedance (Z) 8 ohm
Resonant frequency (fs)1.5kHz
Max. frequency range fx-15kHz
Rec. crossover freq. (12dB)2.5kHz
Music power 20WMAX
Power rating 10WRMS
SPL (1W/1m) 89dB
Voice coil diameter12mm
Magnet diameter45mm

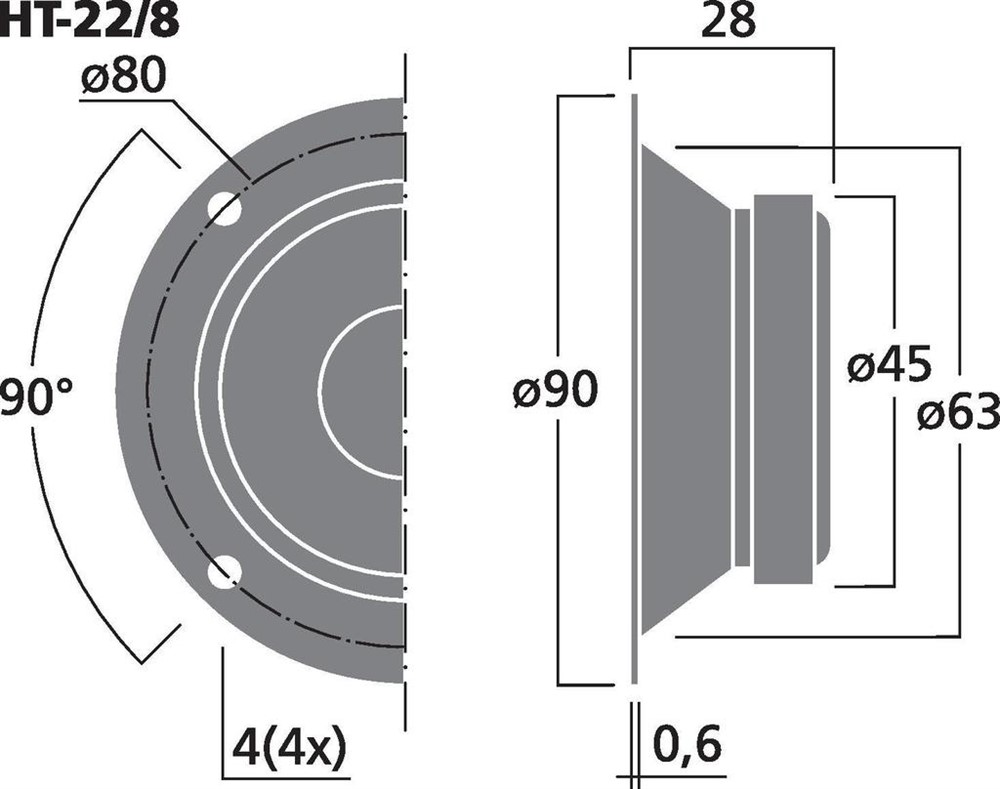

Mounting cutout Ø 65mm
Mounting depth 28mm
DimensionsØ 90mm
Weight 0.17kg
