415-0050NE

2x1,5mm²
892021
Not in stock, on order
Product question

What would you like to know about 415-0050NE?

Send

Description

Where brute force reigns in a useful manner...

the sound people are at work and they will treat the cables not exactly squeamishly.

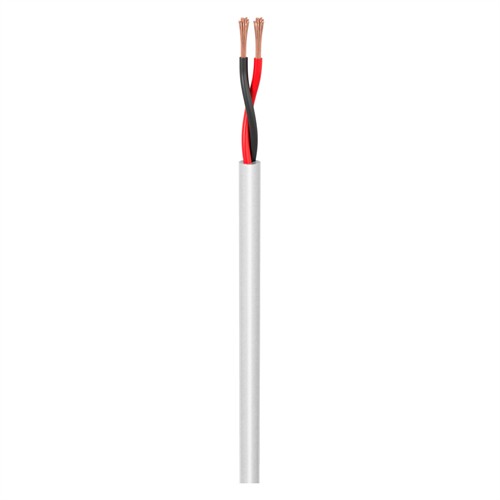

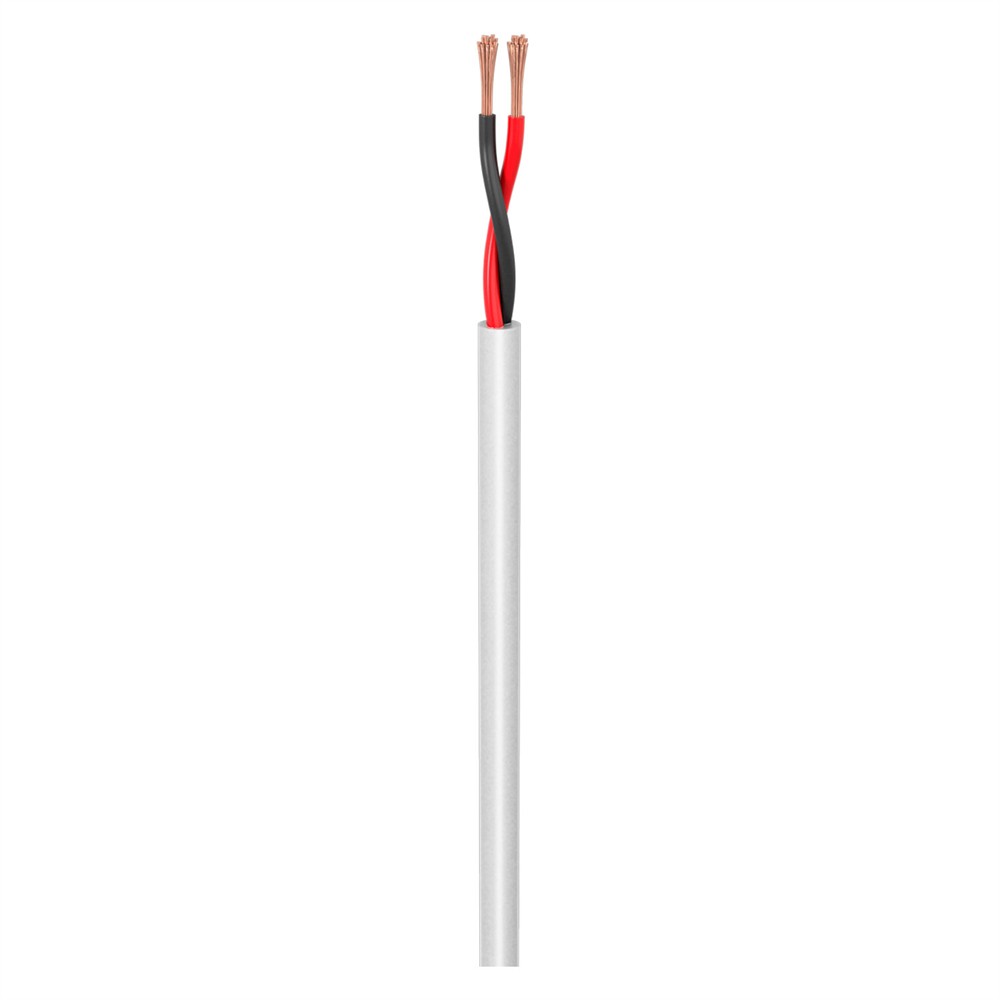

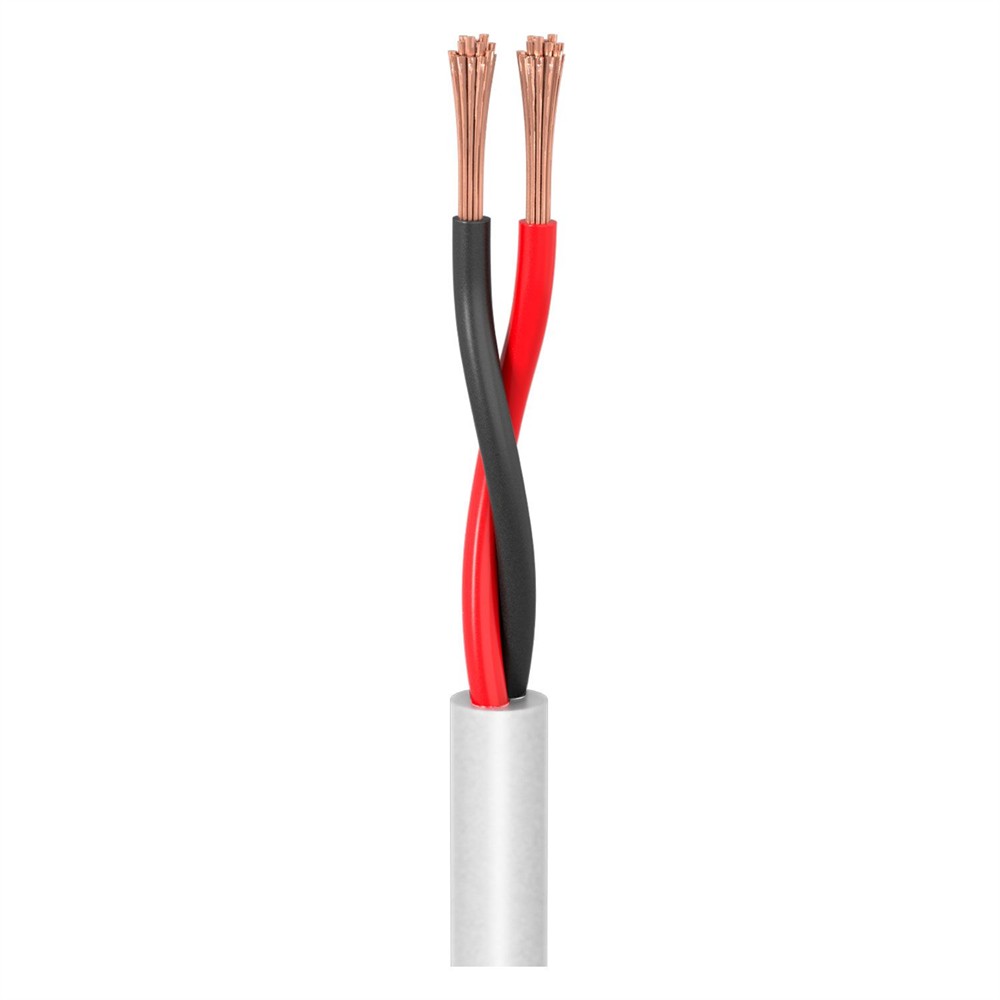

No problem for our robust Meridian Mobile SP215. This cable has been designed particularly for loudspeakers and here it meets all specific technical requirements. Low-oxygen Cu wires ensure better sound quality and a longer life. All PVC versions are easy to reel.

Advantages:

  • flexible and easy to rollable for cable reel
  • Small in diameter
  • Very durable due to the use of special coating mixtures
  • Affordable price

Application:

  • PA sound systems of all kinds
  • For ELA technology
  • Cabling of HiFi systems
Colour: white
Construction: (2LIY1,50mm²)Y
Jacket material: PVC
Jacket Ø [mm]: 6.80
Jacket Ø ["]: 0.2677
Number of Channels (audio): 1
Inner conductor: 2
Inner conductor (audio): 2
Inner conductor (audio) [mm²]: 1,50
Inner conductor (audio) [sqin]: 0.0023
Inner conductor Ø (audio) [mm]: 1,38
Inner conductor Ø (audio) ["]: 0.0543
AWG (audio): 16
Copper strands (audio): 84
Copper strand Ø (audio) [mm]: 0,15
Copper strand Ø (audio) ["]: 0.0059
Conductor insulation Ø [mm]: 2,62
Conductor insulation Ø ["]: 0.1031
Weight per 1 m [g]: 78
Weight at 1000 ft. [lbs]: 52.4874
UV-resistant: yes
Fire load per m [kWh]: 0,28
Style variant: round

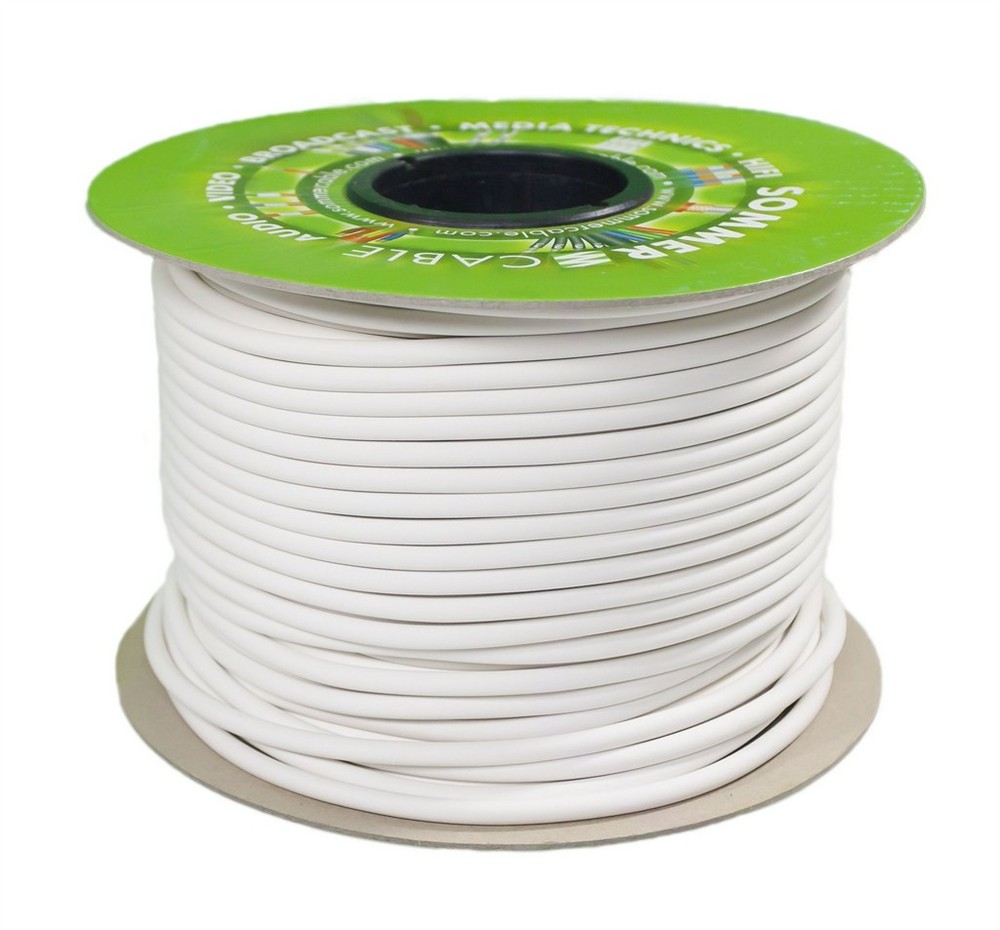

Packing: 100 m spool, 500 m spool
Temperature min. [°C]: -30
Temperature max. [°C]: 70
Width [mm]: 6,8
Width ["]: 0.2677
Height [mm]: 6,8
Height ["]: 0.2677
Capac. cond./cond. per 1 m (audio) [pF]: 150
Capacity wire/wire at 1 ft. (audio) [pF]: 45.72
Insulation resist. per 1 km [GΩ]: 0,005
Insulation resist. per 1000 feet [GΩ]: 0.0015
Insulation resist. per 1 km (audio) [GΩ]: 0,005
Insulation resist. per 1000 feet (audio) [GΩ]: 0.0015
Conductor resistance per 1 km [Ω]: 13
Conductor resistance per 1000 ft. [Ω]: 3.9624
BPVo-Euroclass: Fca
