425-0051

2x2.5mm²
896341
Not in stock, on order
Product question

What would you like to know about 425-0051?

Send

Description

Where brute force reigns in a useful manner...

the sound people are at work and they will treat the cables not exactly squeamishly.

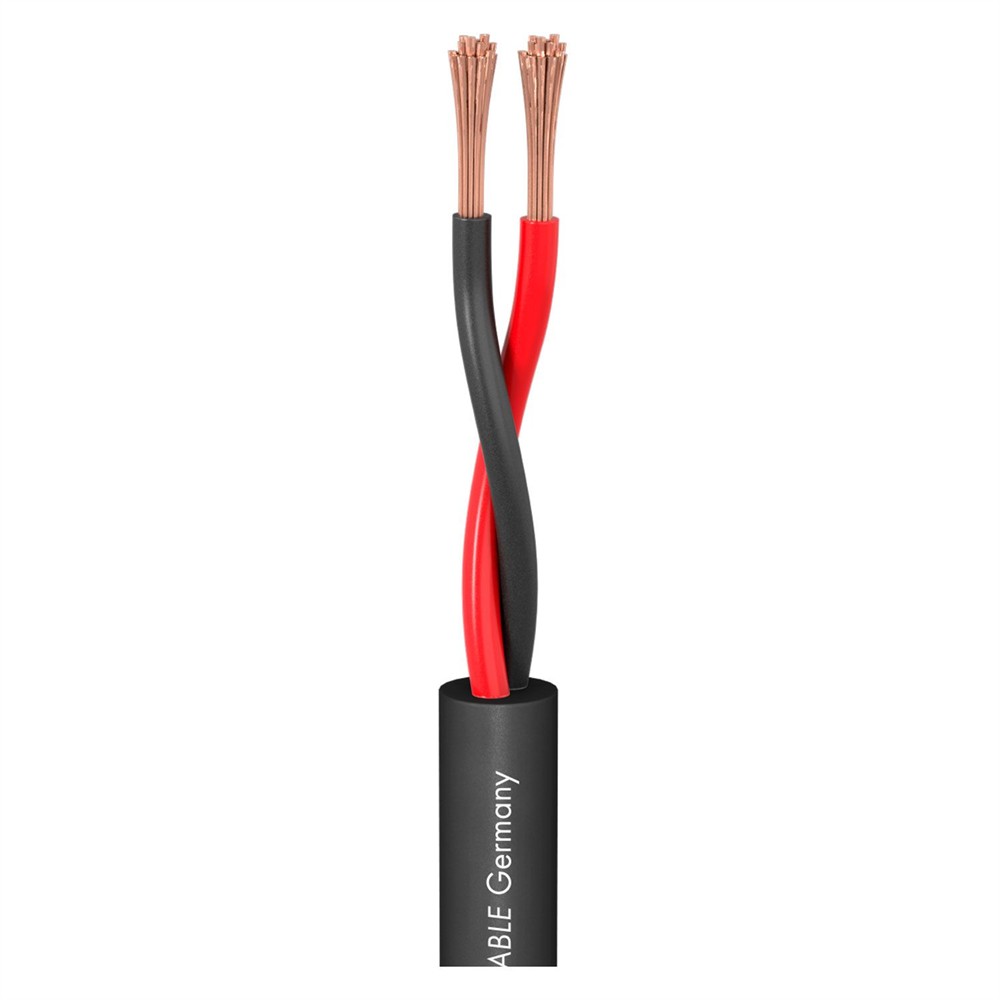

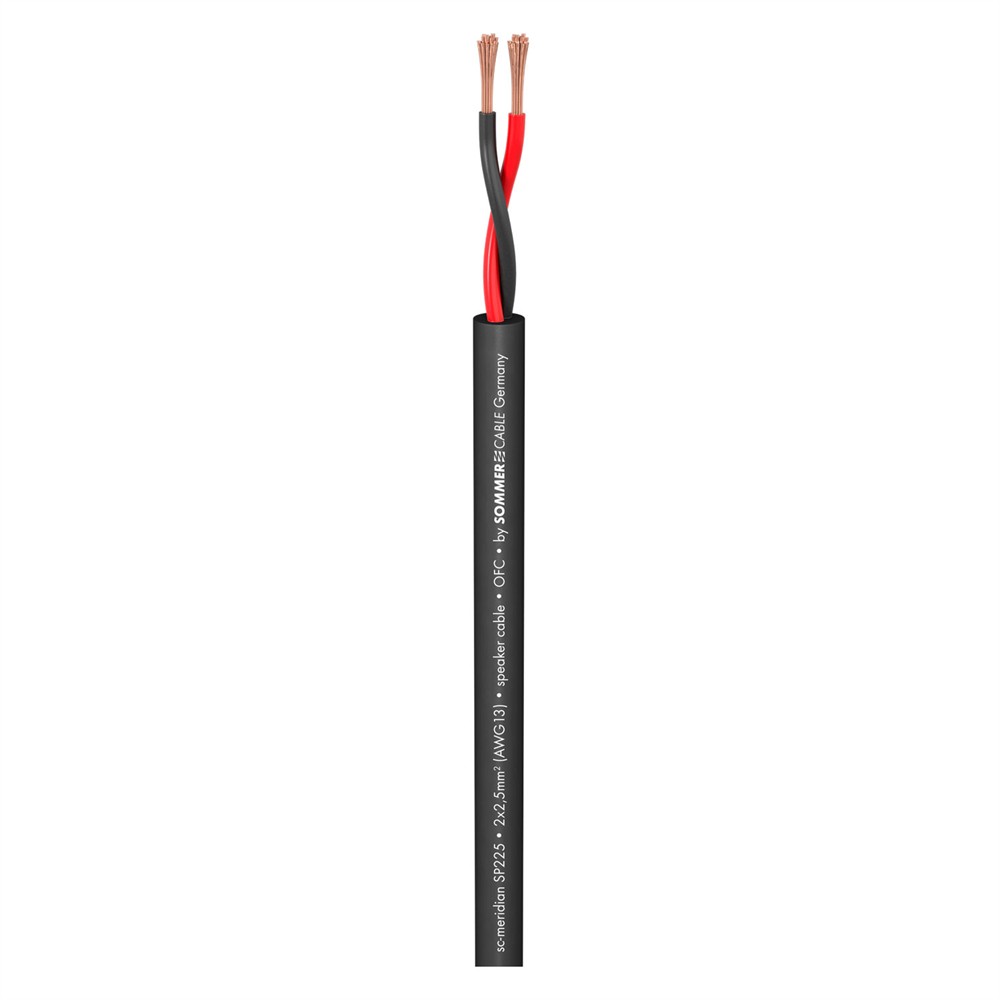

No problem for our robust Meridian Mobile SP225. This cable has been designed particularly for loudspeakers and here it meets all specific technical requirements. Low-oxygen Cu wires ensure better sound quality and a longer life. All PVC versions are easy to reel.

Advantages:

  • flexible and easy to rollable for cable reel
  • Small in diameter
  • Very durable due to the use of special coating mixtures
  • Affordable price

Application:

  • PA sound systems of all kinds
  • For ELA technology
  • Cabling of HiFi systems
Colour: black
Construction: (2LIY2,5mm²)Y
Jacket material: PVC
Jacket Ø [mm]: 7,80
Jacket Ø ["]: 0.3071
Number of Channels (audio): 1
Inner conductor: 2
Inner conductor (audio): 2
Inner conductor (audio) [mm²]: 2,50
Inner conductor (audio) [sqin]: 0.0039
Inner conductor Ø (audio) [mm]: 1,78
Inner conductor Ø (audio) ["]: 0.0701
AWG (audio): 13
Copper strands (audio): 140
Copper strand Ø (audio) [mm]: 0,15
Copper strand Ø (audio) ["]: 0.0059
Conductor insulation Ø [mm]: 3,05
Conductor insulation Ø ["]: 0.1201
Weight per 1 m [g]: 106
Weight at 1000 ft. [lbs]: 71.3291
UV-resistant: yes
Fire load per m [kWh]: 0,33
Style variant: round
Packing: 100 m spool, 500 m spool
Temperature min. [°C]: -30
Temperature max. [°C]: 70
Width [mm]: 7,8
Width ["]: 0.3071
Height [mm]: 7,8
Height ["]: 0.3071
Capac. cond./cond. per 1 m (audio) [pF]: 136
Capacity wire/wire at 1 ft. (audio) [pF]: 41.4528
Insulation resist. per 1 km [GΩ]: 0,005
Insulation resist. per 1000 feet [GΩ]: 0.0015
Insulation resist. per 1 km (audio) [GΩ]: 0,005
Insulation resist. per 1000 feet (audio) [GΩ]: 0.0015
Conductor resistance per 1 km [Ω]: 7,5
Conductor resistance per 1000 ft. [Ω]: 2.286
BPVo-Euroclass: Fca
