The marathon runner...
Advantages:
- Optimum transmission quality even with excess lengths due to the large wire gauge of 2 x 0,50 mm²

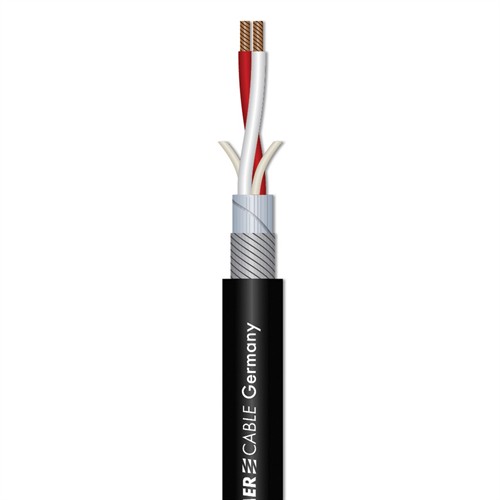

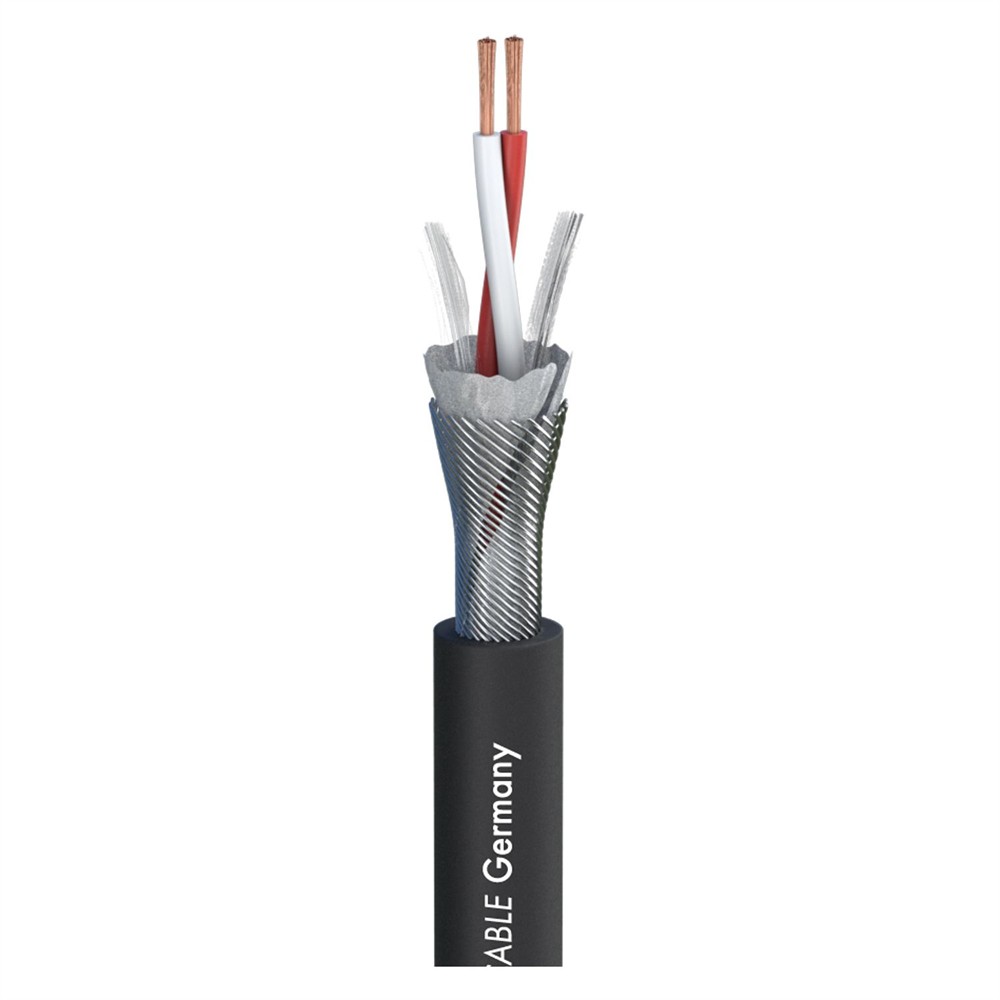

- 100 % shielding due to dense helical copper mesh screen and extra metallised fleece
- Great durability due to the thick PVC with a diameter of 6,70 mm
- Easy to reel and good tensile strength
Application:
- Broadcasting and OB van technology, building installation
- Professional studio technology
- Tough stage application
- Installation in discos, coffee shops, at sporting events
100m Rulle
Vill ni beställa mindre än 100m tillkommer en klippkostnad på 50:-
Technical Data:
Properties: OFC oxygen free copper
Properties: Analog
Application area: Stage / live
Application area: Mobile outdoor / indoor
Application area: ELA 100 V
Application area: Installation
Application area: Studio / Broadcast
Application: Microphone Cable
Colour: black
Colour detailed: black
Signal transmission: symmetrical
Jacket material: PVC
Jacket Ø: 6,5 mm
Number of Channels (audio): 1
Inner conductor (audio): 2
Inner conductor (audio): 0,50 mm²
Inner conductor Ø (audio): 0,80 mm
AWG (audio): 20
Shielding: Copper spiral sleeve tin-plated + metalic fleece
Copper strands (audio): 28
Copper strand Ø (audio): 0,15 mm
Conductor insulation material: PE
Conductor insulation Ø: 1,65 mm
Weight per 1 m: 53 g
UV-resistant: yes
Fire load per m: 0,23 kWh
Style variant: round
Shielding factor: 100 %
Packing: 500 m spool
Packing: 100 m spool
Temperature min.: -25 °C
Temperature max.: 70 °C
Width: 6,5 mm
Height: 6,5 mm
Capac. cond./cond. per 1 m (audio): 80 pF
Capac. cond./shield. per 1 m (audio): 145 pF
Insulation resist. per 1 km: 1 GΩ
Insulation resist. per 1 km (audio): 1 GΩ
Conductor resistance per 1 km: 37 Ω
Shield. resistance per 1 km: 27 Ω
