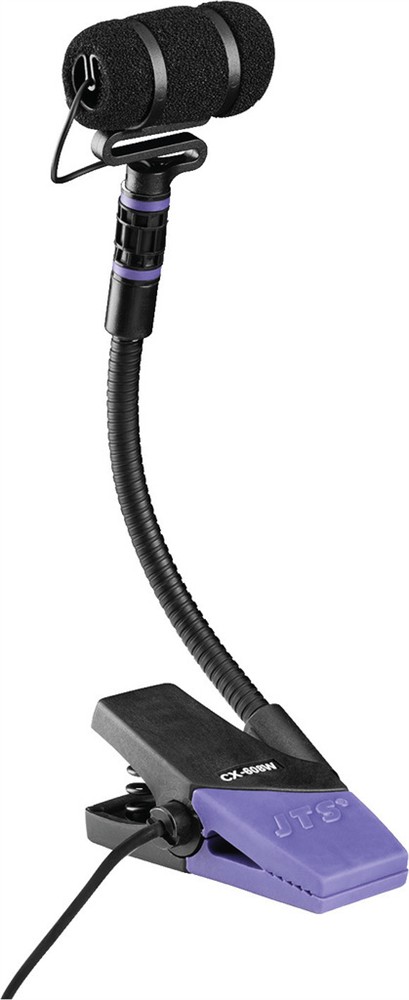

Electret instrument microphone
- For sound pickup of wind instruments
- Wide dynamic range
- Crystal-clear and crisp sound
- Integrated spring-type clamp for attaching to funnel of a wind instrument
- Robust gooseneck, can be turned by 230°
- Design of low structure-borne noise with low susceptibility to wind noise

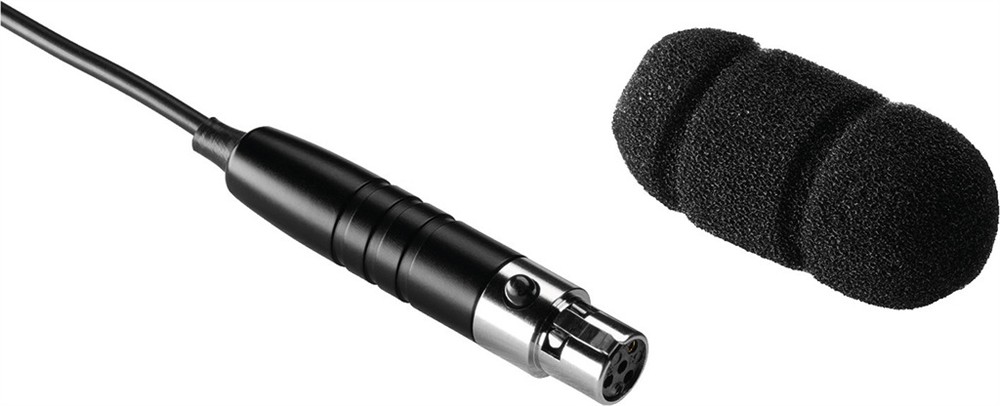

- 1.4 m cable with fitted 4-pole mini XLR plug for direct connection to an optional pocket transmitter from JTS or to the phantom power supply adapter/mixer PS-510M
- Supplied in a robust transport case with windshield
| Description |
instrument microphone |
| Transmission method |
cable |
| Polar pattern |
cardioid |
| System |
electret |

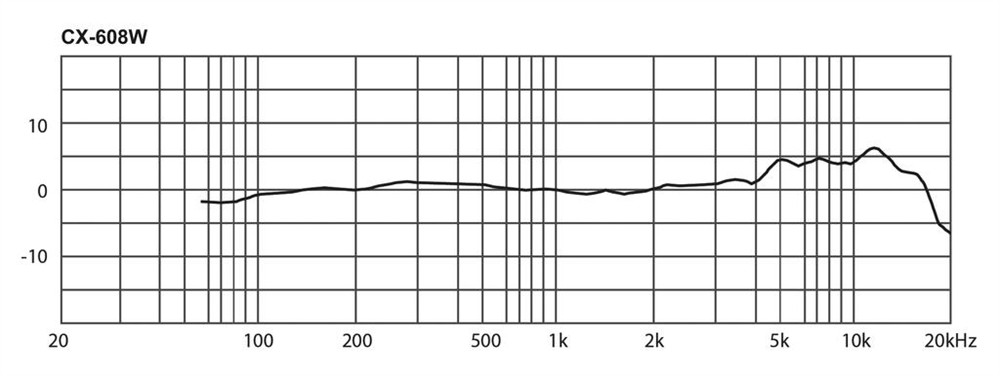

| Audio frequency range |
30-18,000 Hz |
| Nominal impedance |
220 Ω |
| Sensitivity |
5 mV/Pa |
| Max. sound pressure |
130 dB |
| Power supply |
pocket transmitter from JTS, power supply adapter from JTS |
| Housing material |
plastic |
| Admiss. ambient temp. |
0-40 °C |
| Weight |
70 g |
| Cable |
1.4 m |
| Connection |
4-pole mini XLR |
| Packaging dimensions (W x H x L) |
0.17 x 0.085 x 0.37 m |
| Gross weight |
0.732 kg |
| Net weight |
0.519 kg |
