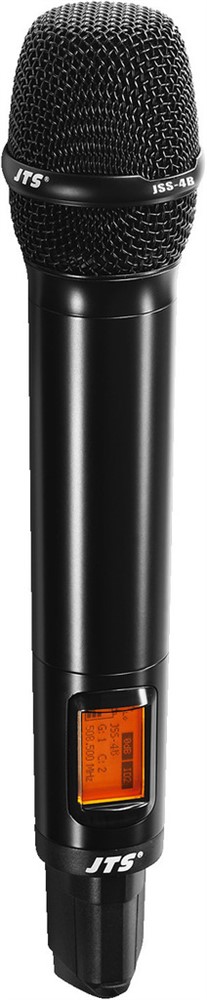

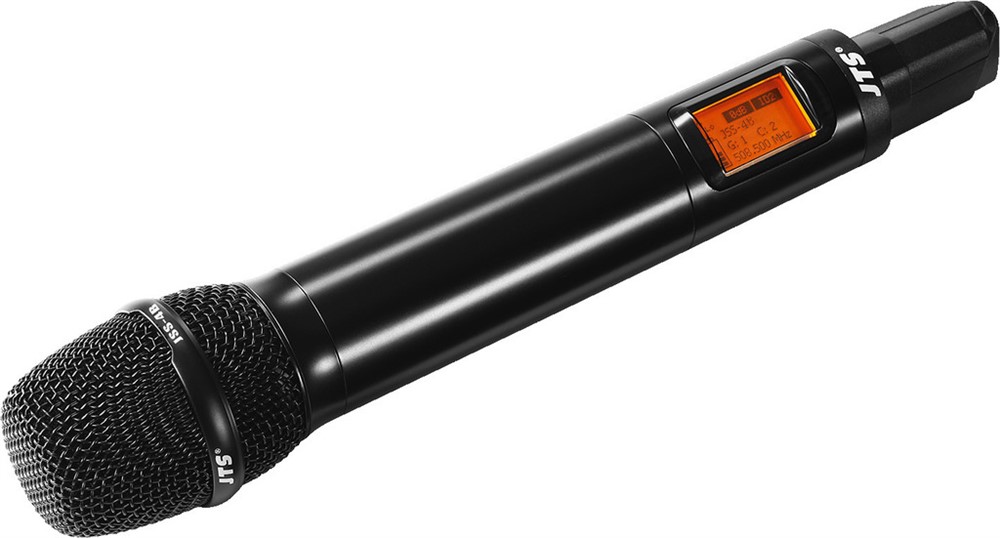

Dynamic hand-held UHF PLL transmitter
- Dynamic microphone cartridge (cardioid polar pattern) with wide dynamic range
- Aluminium housing
- Bandwidth: 36 MHz
- 6 groups, each with up to 22 compatible preset channels
- 1,441 selectable individual frequencies
- REMOSET technology for receiver/transmitter synchronisation
- Adjustable sensitivity (-15 dB to +15 dB)
- Lock/mute function
- 4-level display for indicating battery status and low battery alert, backlit LCD
- Switchable transmitting power
There are restrictions or requirements within the EU!
Please read the notes regarding wireless systems in the section “IMPORTANT INFORMATION”!
tools4music 02/2019
“It features good ergonomics, high-quality workmanship and a pleasant sound. I compared it with a Neumann KMS 104 Plus and the dynamic cartridge of the JSS-4B provides an amazingly close sound.”
| Description | hand-held microphone |
| Version | - |
| Transmission method | wireless |
| Polar pattern | cardioid |
| System | dynamic |
| Carrier frequency range | 506-542 MHz |
| Transmitting power | 10/50 mW |
| Power supply | 2 x batt. AA size, alkaline (not supplied) |
| Operating time | > 20 h |
| Audio frequency range | 50-18,000 Hz |
| Nominal impedance | - |
| Sensitivity | - |
| S/N ratio | - |
| Max. sound pressure | 150 dB |
| Power supply | - |
| Gooseneck length | - |
| Housing material | aluminium |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | Ø 50 mm x 253 mm |
| Weight | 335 g |
| Cable | - |
| Connection | - |
