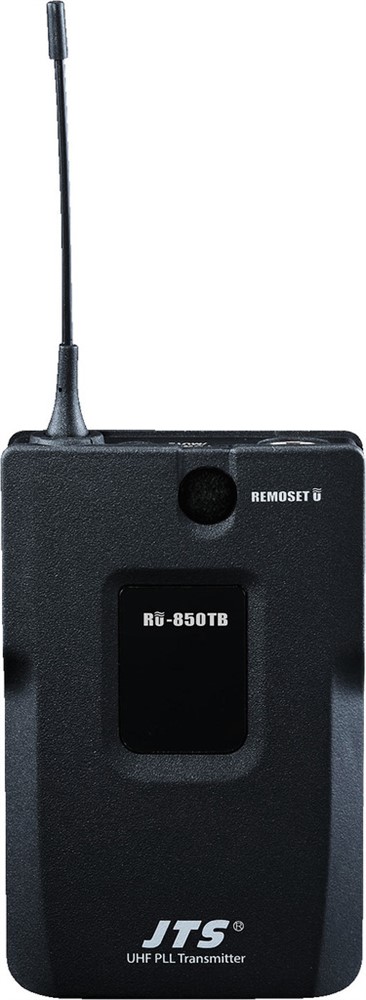

UHF PLL pocket transmitter
- Suitable for combination with a headband microphone or an instrument microphone with 4-pole mini XLR connector
- Bandwidth: 36 MHz
- 6 groups, each with up to 22 compatible preset channels (114 channels)
- REMOSET ULTRASONIC technology for receiver/transmitter synchronisation
- Sensitivity adjustment (-35 dB bis +15 dB) and transmitting power (10/50 mW) can be configured via receiver
- Lock function
- 2-level display for indicating battery status and low battery alert
There are restrictions and requirements in the EU!
Please read the notes regarding wireless systems in the section “IMPORTANT INFORMATION”!
| General information | - |
| Description | pocket transmitter |
| Carrier frequency range | 506-542 MHz |
| Audio frequency range | 60-15,000 Hz |
| Channels | 1 |
| THD | - |
| Dynamic range | - |
| RF S/N ratio | - |
| Operating time | 30 h |
| Admiss. ambient temp. | 0-40 °C |
| Power supply | - |
| Dimensions | - |
| Total weight | - |
| Connections | - |
| Specifications transmitter | - |
| Transmitting power | 10/50 mW |
| Operating range | - |
| Power supply transmitter | 2 x batt. AA size, alkaline (not supplied) |
| Width transmitter | 62 mm |
| Height transmitter | 97 mm |
| Depth transmitter | 20 mm |
| Weight transmitter | 69 g |
| Connections transmitter | 4-pole mini XLR |
| Specifications receiver | - |
| Audio signal receiver | - |
| Power supply receiver | - |
| Width receiver | - |
| Height receiver | - |
| Depth receiver | - |
| Weight receiver | - |
| Connections receiver | - |
