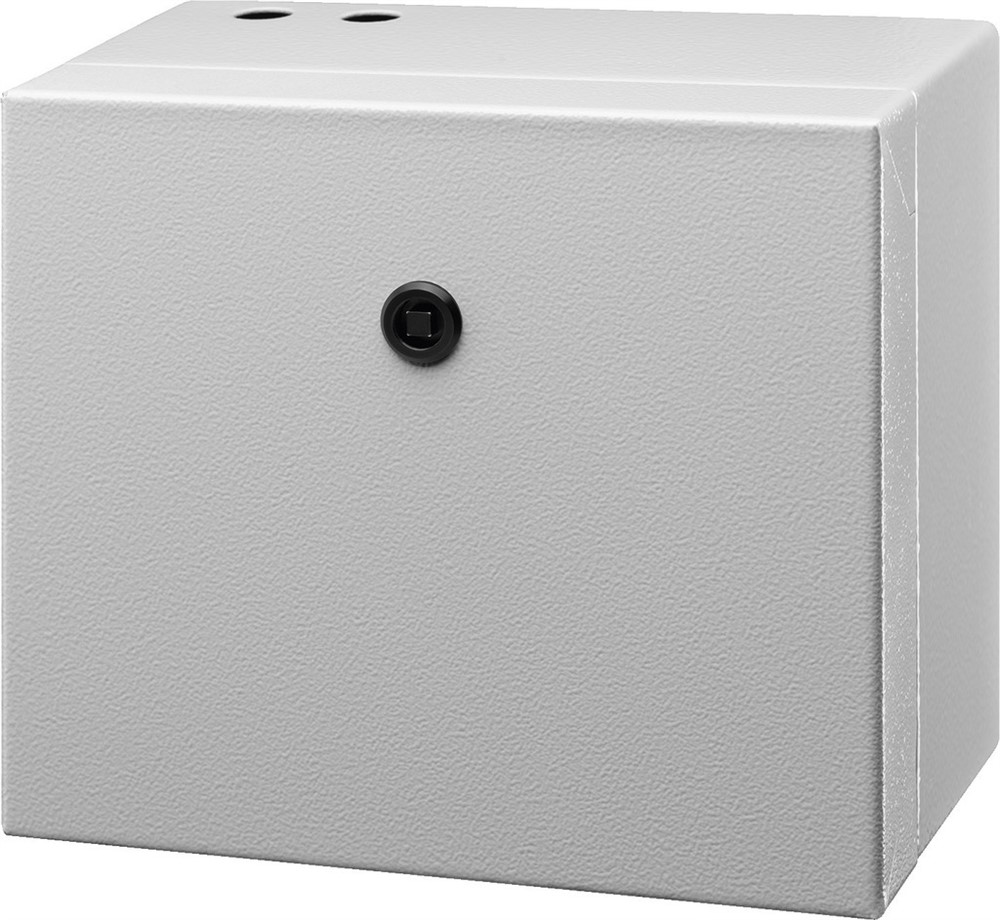

Wall-mounted housing,
for mounting the mixer with integrated MP3 player MXT-52MP3.
- Sheet steel version
- Light grey powder coating (RAL 7035)

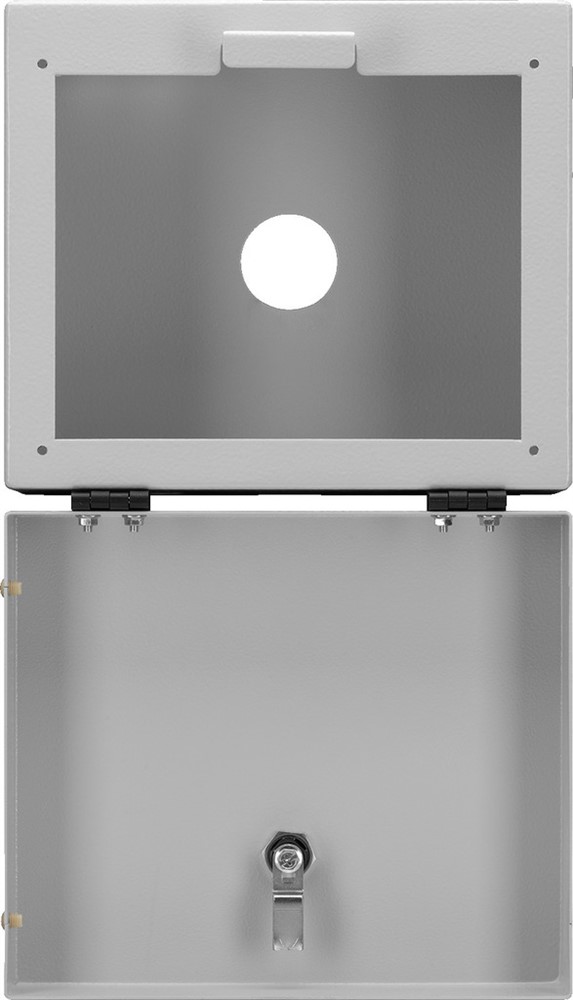

- Attached hinged cover, opens downwards, non-removable, lockable
- Round rear panel cutout (40 mm) for cable inlet
- Two round cutouts at the top (16 mm) for cable inlet, high-strength cable gland possible
- Two round cutouts at the bottom (16 mm) for cable inlet, high-strength cable gland possible
- Max. mounting depth behind the front panel: 74 mm
| TEKNISK DATA: |
| Intended use/capacity |
wall-mounted housing |
| Size |
suitable for MXT-52MP3 |
| Rack units, RU |
- |
| Colour |
grey (RAL 7035) |
| Version |
hinged cover, opens downwards, non-removable, lockable |
| Material |
sheet steel housing, powder-coated |
| Castors |
- |
| Mounting accessories |
matching key |
| Protective class |
- |
| Inside dimensions |
- |
| Usable depth |
74 mm |
| Width |
220 mm |
| Height |
190 mm |
| Depth |
126 mm |
| Max. load capacity |
- |
| Weight |
2 kg |
