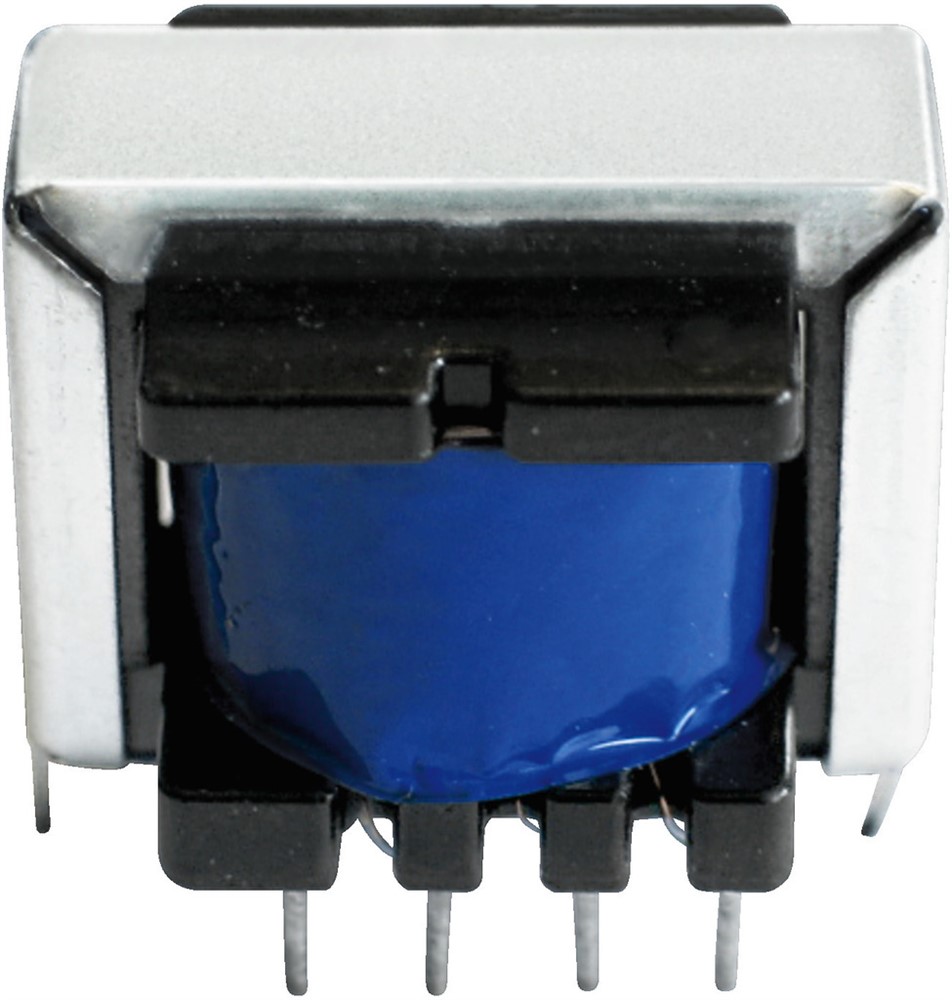

Audio transformer 1:1/2:1 for line signals - Unshielded version with print connections
- Wideband version
- Change from unbalanced to balanced and vice versa
- Galvanic isolation to avoid/eliminate hum loops

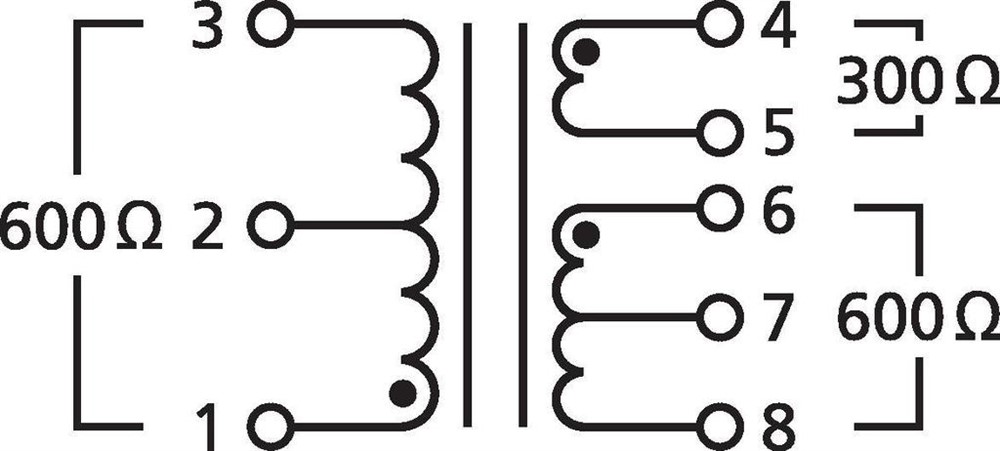

- Various level adjustment possibilities when windings are arranged accordingly
When installing unshielded transformers into units with interference fields (e.g. power transformers), attention has to be paid to respective shielding measures.
| Frequency range | 15-30,000Hz |
| Transformation ratio | 1:1/2:1 |
| Input impedance | 600 ohm |
| Output impedance | 600 ohm/300 ohm |
| Optimum source imped. | 50-600 ohm |
| Optimum load imped. | ? 5k ohm |
| Max. input voltage (1% THD/40Hz) | 5V |
| Dimensions | 25x19x19.5mm |
| Weight | 28g |
