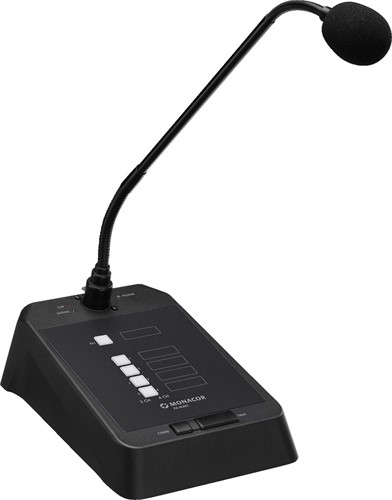

PA zone paging microphone,
for PA matrix mixing amplifier PA-M224 or PA-M412.
- 4 zone selector switch
- ALL-CALL button
- Plug-in electret gooseneck microphone (3-pole XLR jack)
- Phantom power for gooseneck microphone
- LED indication for signal status
- Power supply via PA-M224 or PA-M412
- Connection to PA-M224 or PA-M412 via RJ45 jack and Cat. 5e network cable (copper, supplied w/o cable), cable length up to 200 m
| Description | PA zone paging microphone |
| Version | - |
| Transmission method | cable |
| Polar pattern | - |
| System | electret |
| Carrier frequency range | - |
| Transmitting power | - |
| Power supply | via PA-M224, PA-M412 |
| Operating time | - |
| Audio frequency range | 45-15,000 Hz |
| Nominal impedance | - |
| Sensitivity | 1 mV/Pa |
| S/N ratio | - |
| Max. sound pressure | - |
| Power supply | - |
| Gooseneck length | 420 mm |
| Housing material | - |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 140 x 65 x 205 mm |
| Weight | 870 g |
| Cable | - |
| Connection | RJ45 |
