Mixerförstärkare

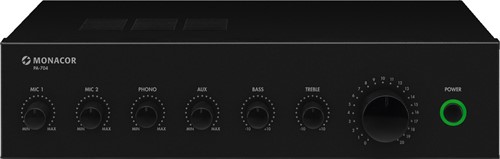

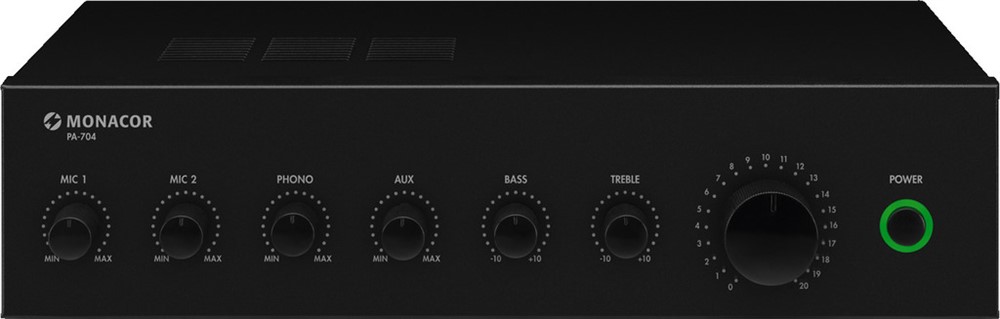

PA-704 är en liten smidig mixerförstärkare som hanterar 100V,4,8 & 16 Ohm högtalare.
Kan drivas med 12-24V förutom 220V. Tystgående tack vare fläktlös kylning koncept.
Levererar 35 W har 1 Aux-ingång (RCA), 1 Phono (RCA) och 2 mikrofon-ingångar
Perfekt för mindre installationer.
- 1 x 35 W
- Silent operation due to fanless cooling concept
- 2 low-impedance microphone inputs
- 1 aux input, 1 phono input

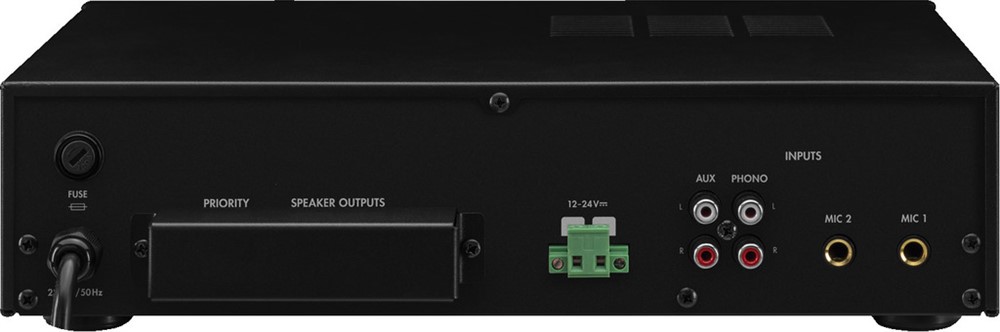

- Speaker outputs via screw terminals
- Input and output level controls
- 2-way tone control for the output
- Connection for a microphone talk button to switch off the other sources during announcements
- Mains operation and 12-24 V emergency power operation
| Peak output power |
70 W |
| Power rating |
35 W |
| Power rating at 2 O |
- |
| Power rating at 4 O |
- |
| Power rating at 8 O |
- |
| Power rating at 16 O |
- |
| Power rating at 100 V |
- |
| Power rating with 4 O bridged operation |
- |
| Power rating with 8 O bridged operation |
- |
| Output impedance |
- |
| Channels |
4 |
| Zones |
- |
| Inputs |
5 mV (mic),
210 mV (aux),
5 mV (phono)
|
| Attenuation factor |
- |
| Frequency range |
100-18,000 Hz |
| Crossover network |
- |
| Crossover frequency |
- |
| Integrated limiter |
- |
| Equalizer bass |
±10 dB/150 Hz |
| Equalizer midrange |
- |
| Equalizer treble |
±10 dB/6 kHz |
| S/N ratio |
> 55 dB |
| Crosstalk attenuation |
- |
| THD |
< 1% |
| Phantom power |
- |
| Mains voltage |
∼ 230 V |
| Mains frequency |
50 Hz |
| Power consumption, operation |
100 VA |
| Power consumption, standby |
- |
| Standby current |
- |
| Operating voltage (possible alternative) |
DC 12-24 V |
| Power supply (possible alternative) |
DC 2.5 A |
| Admiss. ambient temp. |
0-40 °C |
| Width |
320 mm |
| Height |
85 mm |
| Depth |
230 mm |
| Rack spaces, RS |
- |
| Weight |
4.97 kg |

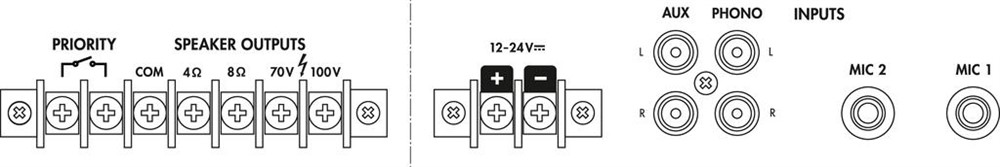

| Connections |
2 x 6.3 mm jack (mic),
1 x RCA L/R (aux),
1 x RCA L/R (phono),
connecting terminals (speakers)
|
