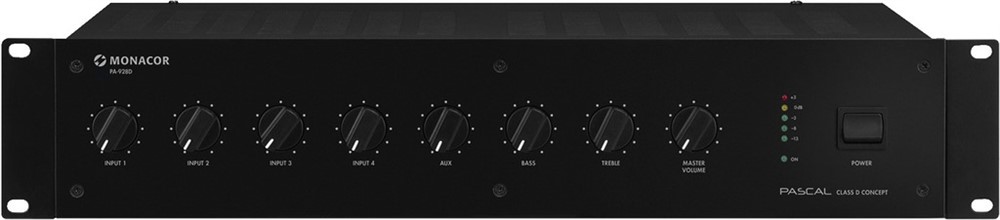

Mono class D PA mixing amplifier
- 1 x 280 W
- Class D concept with PASCAL amplifier module
- Energy-efficient concept due to high efficiency
- Lightweight design due to compact switch-mode power supply
- Silent operation due to fanless cooling concept
- 4 balanced mic/line inputs
- Mic 1 with priority circuit and automatic talkover
- Additional connection for desktop microphone via screw terminal
- 1 aux input
- Speaker outputs via screw terminals
- Line output
- Insert facility, e.g. for effect units, equalizers, feedback controllers
- Input level control and output level control
- 2-way tone control for the output
- 48 V phantom power supply for each microphone input, to be activated individually
- Limiter switch 8 O/100 V
- Removable mounting brackets
| Peak output power | - |
| Power rating | 280 W |
| Power rating at 2 O | - |
| Power rating at 4 O | - |
| Power rating at 8 O | 280 W |
| Power rating at 16 O | - |
| Power rating at 100 V | 280 W/33 O |
| Power rating with 4 O bridged operation | - |
| Power rating with 8 O bridged operation | - |
| Output impedance | 8 O |
| Channels | 5 |
| Zones | - |
| Inputs | 3 mV (mic), 200 mV (line), 140 mV (aux) |
| Attenuation factor | - |
| Frequency range | 20-20,000 Hz |
| Crossover network | - |
| Crossover frequency | - |
| Integrated limiter | yes |
| Equalizer bass | ± 10 dB/100 Hz |
| Equalizer midrange | - |
| Equalizer treble | ± 10 dB/10 kHz |
| S/N ratio | > 80 dB |
| Crosstalk attenuation | - |
| THD | < 0.1% |
| Phantom power | 48 V |
| Mains voltage | ∼ 90-230 V |
| Mains frequency | 50-60 Hz |
| Power consumption, operation | 300 VA |
| Power consumption, standby | - |
| Standby current | - |
| Operating voltage (possible alternative) | - |
| Power supply (possible alternative) | - |
| Admiss. ambient temp. | 0-40 °C |
| Width | 482 mm |
| Height | 88 mm |
| Depth | 275 mm |
| Rack spaces, RS | 2 |
| Weight | 5 kg |

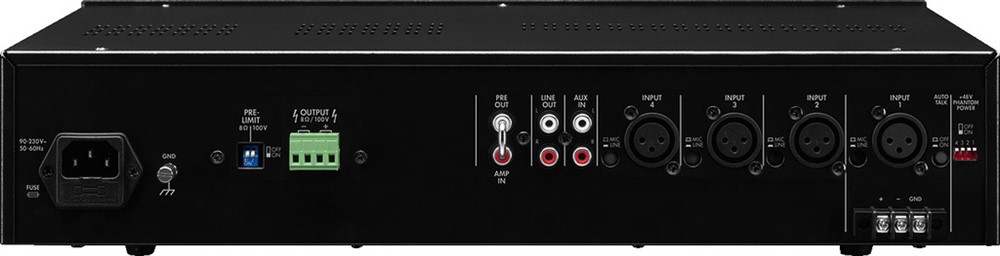

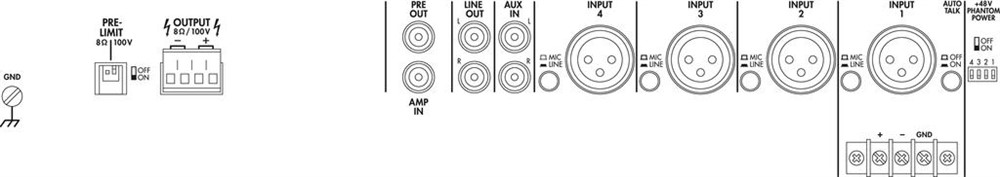

| Connections | 4 x XLR (mic/line), 1 x RCA L/R (aux), screw terminals (speakers) |
