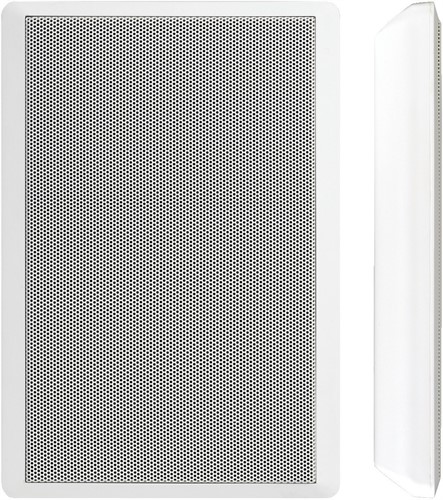

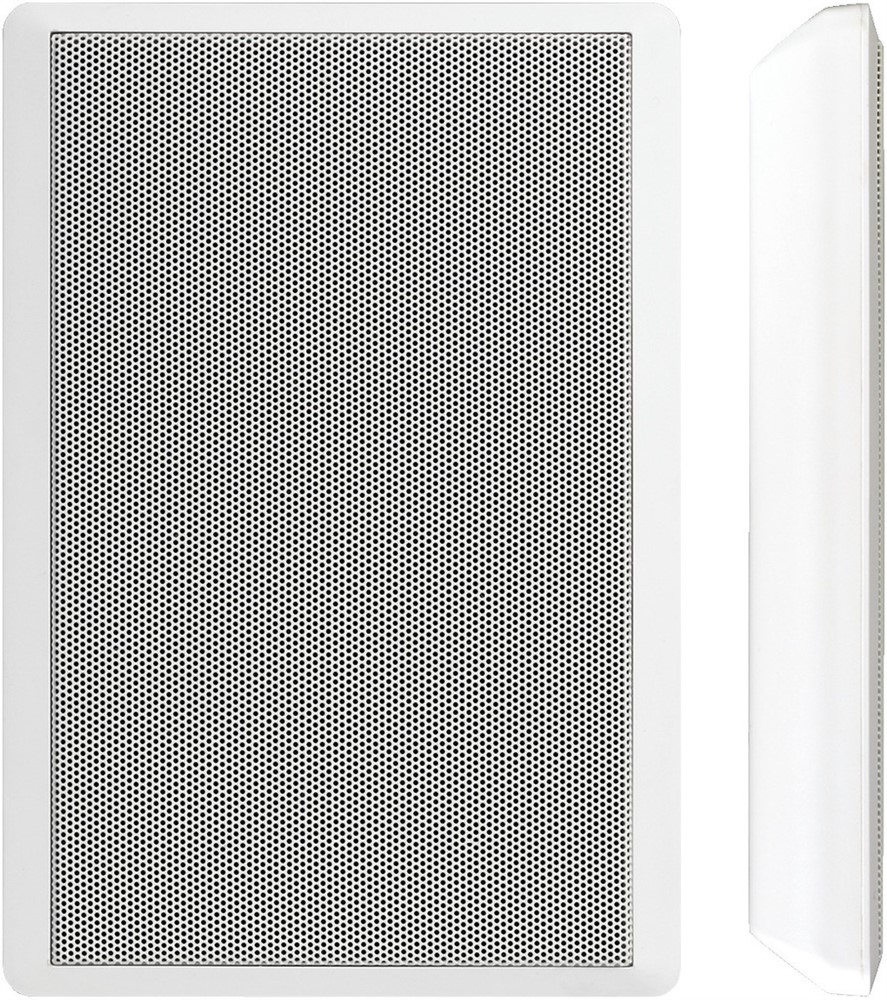

These wall speakers impress by an extraordinarily flat design which is only achieved by applying the latest NEODYMIUM magnetic systems.
The ESP-130... speaker systems already provide a very pleasant and complete sound and yet, with a total depth of only 38 mm, they are of such a flat design, that they are just as unobtrusive on the wall as a flush-mount speaker.
PA wall speaker
- 100 V line technique via audio transformer with 3 W and 6 W power taps or 4 Ω operation (20 W)
- 2-way system with neodymium bass-midrange speaker and dome tweeter
- White plastic cabinet with protective metal grille
- Slimline design for unobtrusive wall mounting
| TEKNISK DATA: |
| Active/passive |
passive |
| Transmission method |
100 V or low-impedance |
| Total output power |
- |
| Power rating (RMS) |
6/3 W (100 V)
20 W (4 Ω)
|
| Total power rating |
- |
| Power rating (RMS) |
6/3 W |
| Impedance |
4 Ω |
| Frequency range |
80-18,000 Hz |
| THD |
- |
| S/N ratio |
- |
| Input signal |
- |
| System |
2-way |
| Full range speaker |
- |
| Bass speaker |
- |
| Midrange speaker |
- |
| Tweeter |
- |
| Number of speakers |
2 |
| Speaker size |
130 |
| Sensitivity |
91 dB/W/m |
| Max. rated SPL |
104 dB |
| Beam angle |
H: 100°/V: 60° |
| Radiation angle, horizontal |
100° |
| Radiation angle, vertical |
60° |
| Features |
- |
| Housing material |
plastic |
| Colour |
white |
| Mounting device |
attachment via screw |
| Protected against ball rebound |
- |
| Protection class |
- |
| Admiss. ambient temp. |
0-40 °C |
| Power supply |
- |
| Dimensions |
185 x 275 x 38 mm |
| Width |
185 mm |
| Height |
275 mm |
| Depth |
38 mm |
| Weight |
1.25 kg |
| Inputs |
spring-loaded terminal |
| Outputs |
- |
| Replacement voice coil |
- |
| Other features |
- |
| Accessories |
- |
| Packing dimensions (W x H x L) |
0.075 x 0.225 x 0.315 m |
| Gross weight |
1.375 kg |
| Net weight |
1.255 kg |
