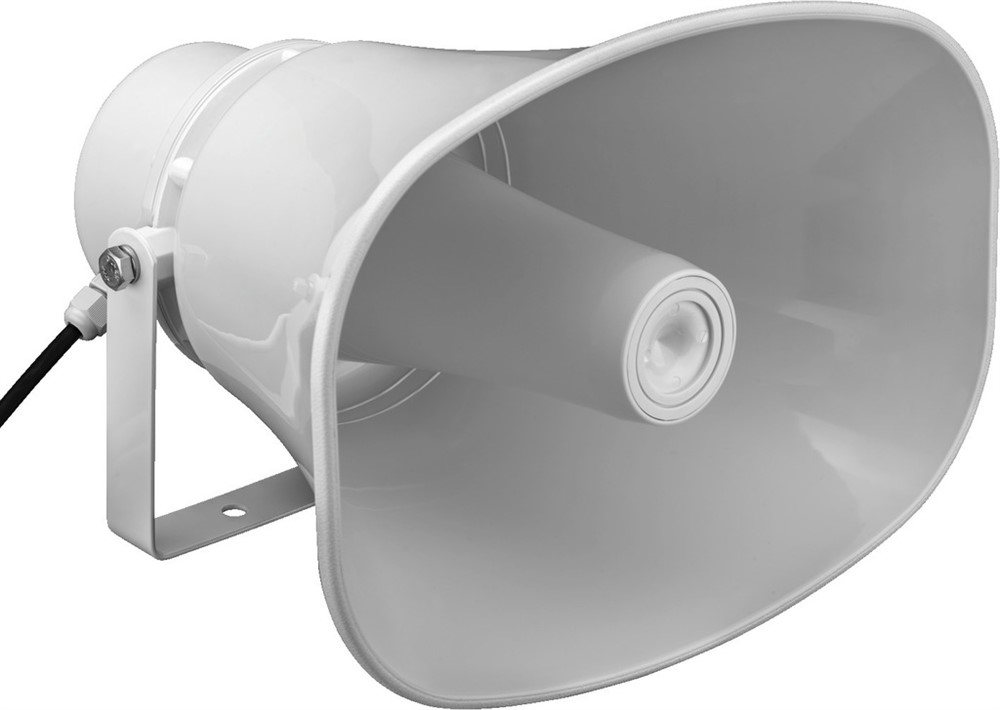

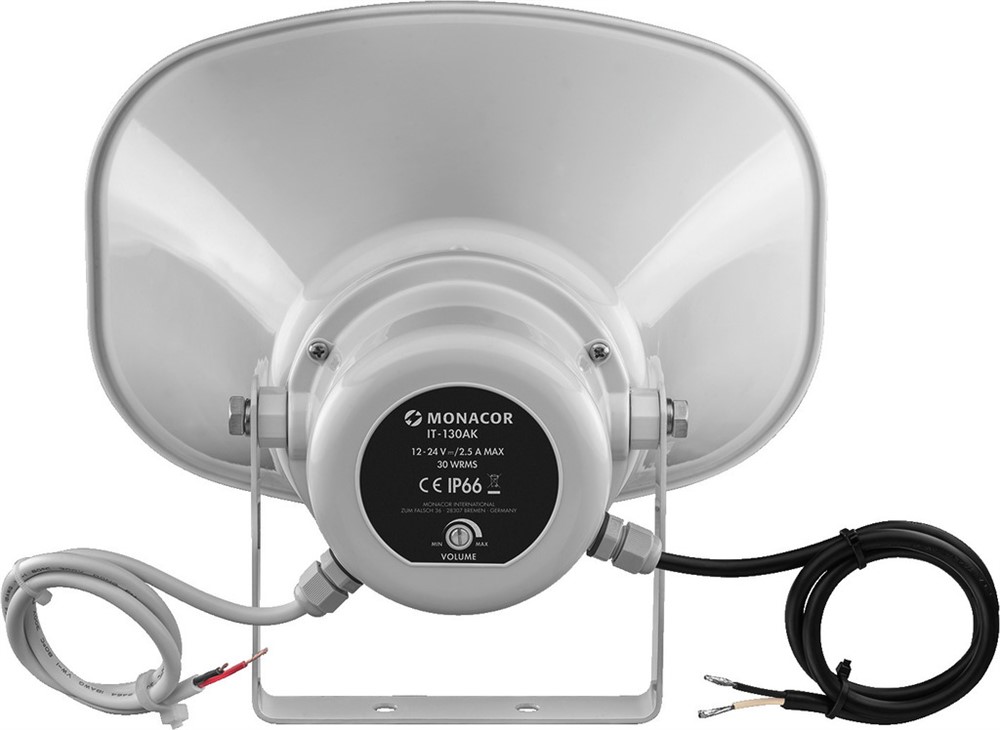

Active weatherproof horn speaker
- Weatherproof and IP66 tested
- Integrated 30 W amplifier
- Volume control
- Easy replaceable connection cables via screw terminals
- Mobile application possible due to voltage supply of 12-24 V DC/2.5 A
| TEKNISK DATA: |
| Active/passive |
active |
| Transmission technology |
cable |
| Total output power |
30 W |
| Power rating (RMS) |
- |
| Total power rating |
- |
| Power rating (RMS) |
- |
| Impedance |
- |
| Frequency range |
250-16,000 Hz |
| THD |
- |
| S/N ratio |
- |
| Input signal |
750 mV/5 kΩ (line) |
| System |
- |
| Full range speaker |
- |
| Bass speaker |
- |
| Midrange speaker |
- |
| Tweeter |
- |
| Number of speakers |
1 |
| Speaker size |
- |
| SPL |
109 dB/W/m |
| Max. rated SPL |
- |
| Beam angle |
- |
| Radiation angle, horizontal |
- |
| Radiation angle, vertical |
- |
| Features |
volume control |
| Housing material |
ABS |
| Colour |
white |
| Mounting device |
mounting bracket |
| Protected against ball rebound |
- |
| Protection class |
IP66 |
| Admiss. ambient temp. |
-20 °C to +50 °C |
| Power supply |
12-24 V DC/2.5 A |
| Dimensions |
290 x 215 x 260 mm |
| Width |
290 mm |
| Height |
215 mm |
| Depth |
260 mm |
| Weight |
1.5 kg |
| Inputs |
open cable ends |
| Outputs |
- |
| Replacement voice coil |
- |
| Other features |
weatherproof |
| Accessories |
- |
| Packing dimensions (W x H x L) |
0.218 x 0.285 x 0.3 m |
| Gross weight |
1.84 kg |
| Net weight |
1.5 kg |
