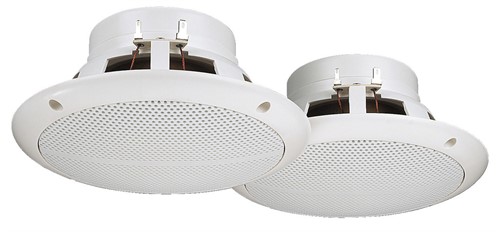

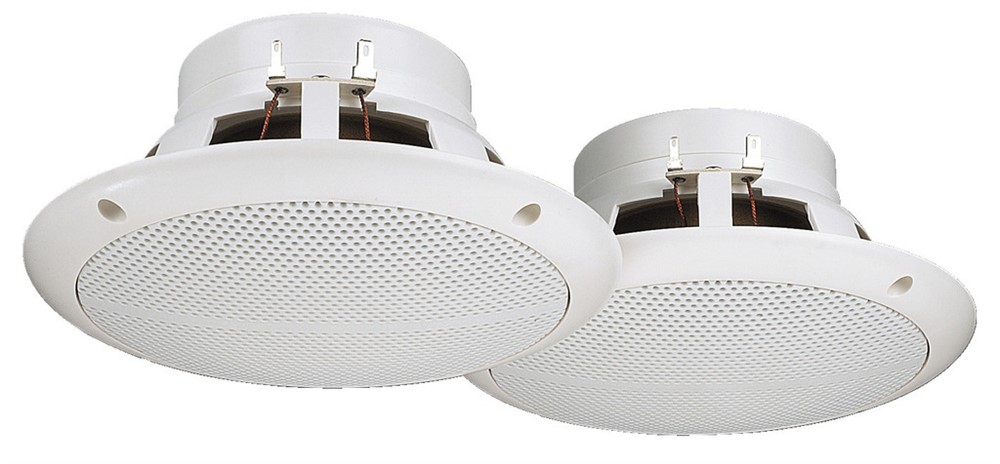

Infällda högtalare i par, koaxiala, 8Ohm, diskant med ferrofluid.
- Fuktsäkra.
- Solid plastkonstruktion och plastkon. Högtalaren är konstruerad i ett stycke.
- Mångsidig användning, t.ex. i bil, PA, terrass eller båt.
| Impedance (Z) |
8 Ohm |
| Transmission method |
- |
| Frequency range |
80-20,000 Hz |
| Resonant frequency (fs) |
- |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) |
- |
| Power rating (RMS) |
30 W |
| Peak music power output (MAX) |
60 W |
| Sensitivity |
87 dB/W/m |
| Max. rated SPL |
- |
| Max. voltage |
- |
| Radiation angle, horizontal |
- |
| Radiation angle, vertical |
- |
| Suspension compl. (Cms) |
- |
| Moving mass (Mms) |
- |
| Mech. Q factor (Qms) |
- |
| Electr. Q factor (Qes) |
- |
| Total Q factor (Qts) |
- |
| Equivalent volume (Vas) |
- |
| DC resistance (Re) |
- |
| Force factor (BxL) |
- |
| Voice coil induct. (Le) |
- |
| Voice coil diameter |
- |
| Voice coil former |
- |
| Linear excursion (XMAX) |
- |
| Eff. cone area (Sd) |
- |
| Magnet weight |
- |
| Magnet diameter |
- |

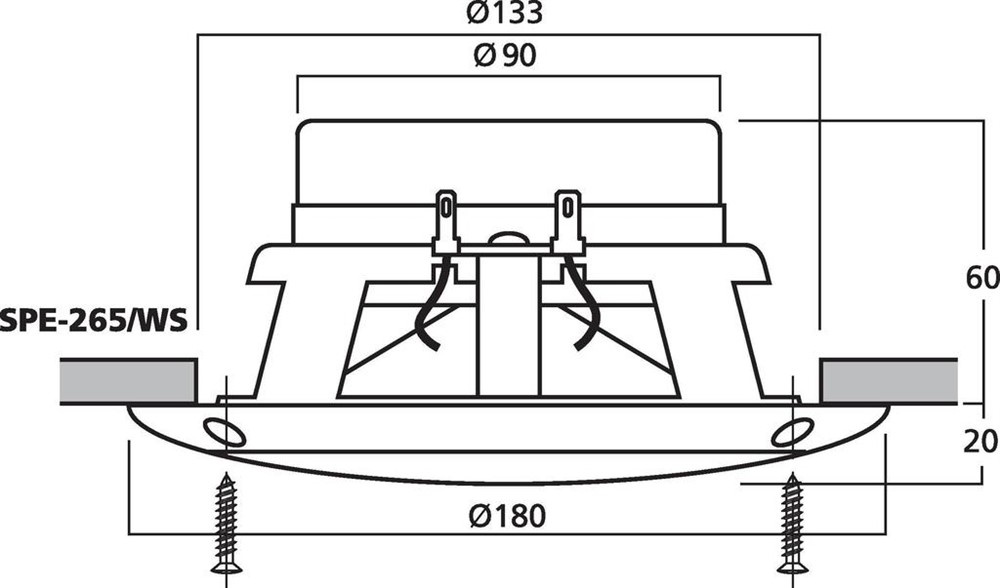

| Mounting cutout |
Ø 133 mm |
| Mounting depth |
60 mm |
| Mounting hole diameter |
- |
| Hole spacing X-axis |
- |
| Hole spacing Y-axis |
- |
| Dimensions |
Ø 180 mm x 80 mm |
| Outside diameter |
Ø 180 mm |
| Width |
Ø 180 mm |
| Height |
- |
| Depth |
80 mm |
| Protective class |
- |
| Admiss. ambient temp. |
0-40 °C |
| Weight |
0.8 kg |
| Packing unit |
- |
| Type of speaker |
165 |
