Professional Speakers from IMG Stage Line
Of very high power capability, high efficiency and with drive parameters which allow a reproduction of the complete bass range. These speakers guarantee excellent results as bass-midrange speakers in 2-way or multiway systems as well as subwoofers with the two larger models.

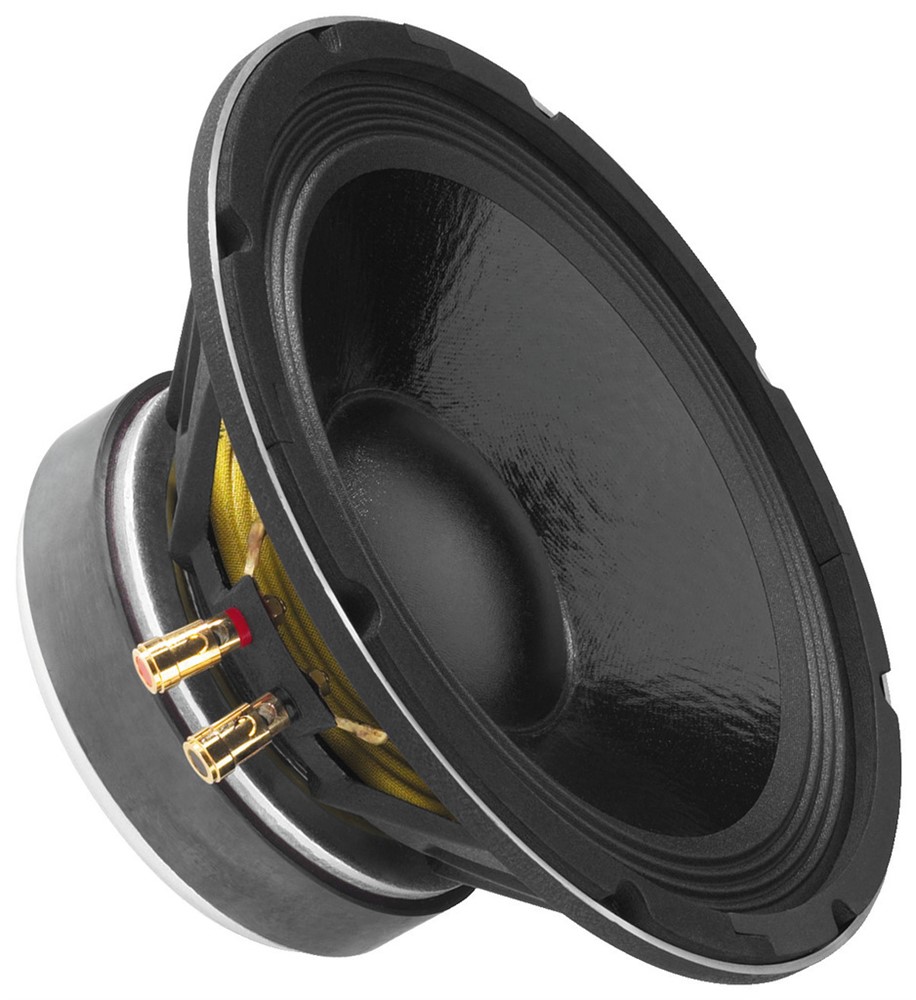

Professional PA bass-midrange speaker, 600 WMAX, 300 WRMS, 8 Ohm
- Of very high power capability
- 25 cm (10") professional speaker of long excursion
- Diecast basket
- Cone with water-repellent coating
- Very neat workmanship with a front-facing basket
- Wide frequency response of low distortion
- High efficiency
- Drive system with drilled pole core and additional magnet for optimising the magnetic field and impedance linearisation
- For compact bass-reflex cabinets from 20 litres on already
- For all kinds of professional and semiprofessional PA applications
| Impedance (Z) |
8 Ohm |
| Transmission method |
- |

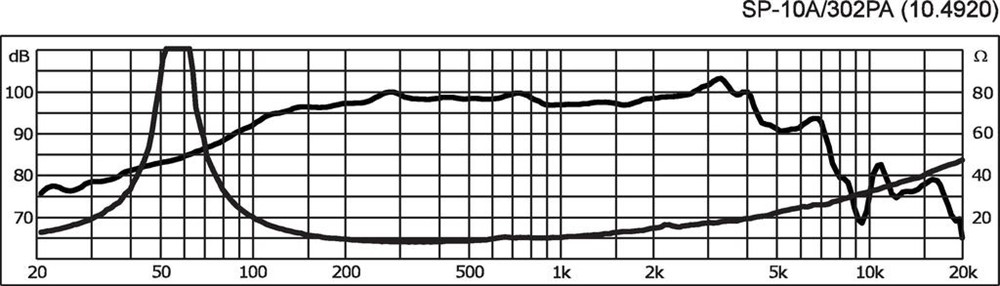

| Frequency range |
f3-3,500 Hz |
| Resonant frequency (fs) |
55 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) |
- |
| Power rating (RMS) |
300 W |
| Peak music power output (MAX) |
600 W |
| Sensitivity |
98 dB/W/m |
| Max. rated SPL |
- |
| Max. voltage |
- |
| Radiation angle, horizontal |
- |
| Radiation angle, vertical |
- |
| Suspension compl. (Cms) |
0.24 mm/N |
| Moving mass (Mms) |
35 g |
| Mech. Q factor (Qms) |
7.44 |
| Electr. Q factor (Qes) |
0.31 |
| Total Q factor (Qts) |
0.3 |
| Equivalent volume (Vas) |
40 l |
| DC resistance (Re) |
6.4 O |
| Force factor (BxL) |
15.82 Tm |
| Voice coil induct. (Le) |
0.65 mH |
| Voice coil diameter |
66 mm |
| Voice coil former |
Kapton |
| Linear excursion (XMAX) |
4 mm |
| Eff. cone area (Sd) |
346 cm2 |
| Magnet weight |
2 kg |
| Magnet diameter |
Ø 154 mm |
| Mounting cutout |
Ø 234 mm |
| Mounting depth |
112 mm |
| Mounting hole diameter |
- |
| Hole spacing X-axis |
- |
| Hole spacing Y-axis |
- |

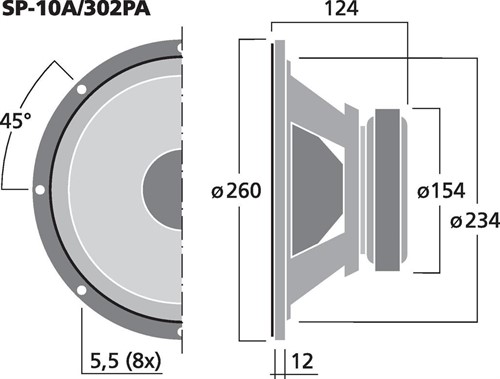

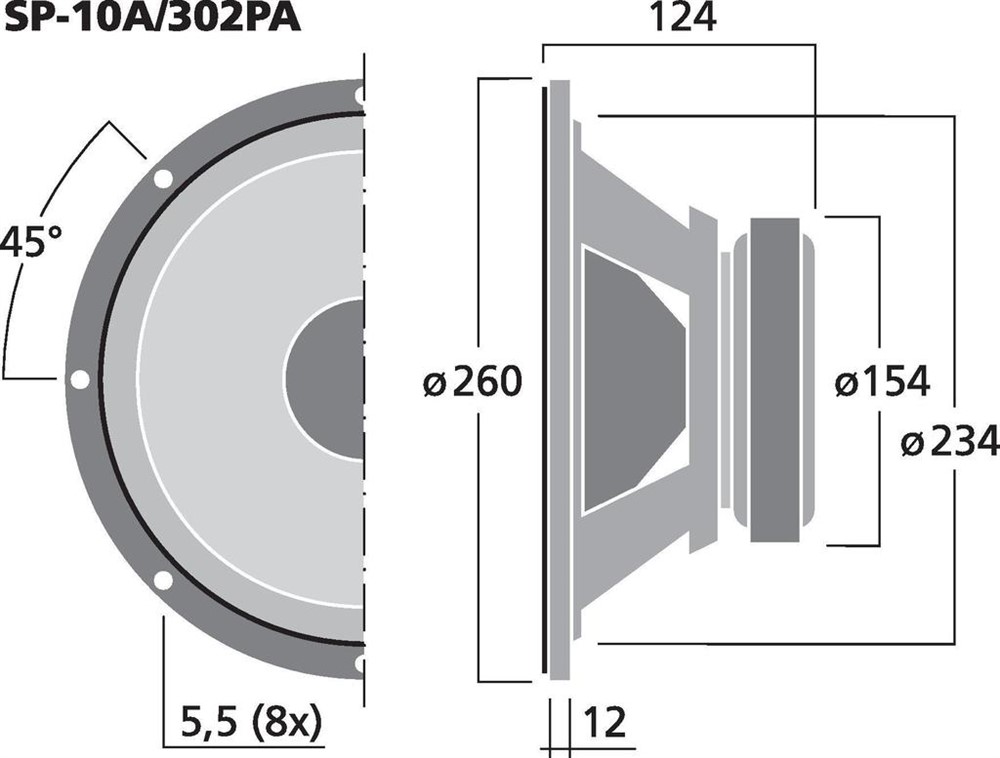

| Dimensions |
Ø 260 mm x 124 mm |
| Outside diameter |
Ø 260 mm |
| Width |
Ø 260 mm |
| Height |
- |
| Depth |
122 mm |
| Protective class |
- |
| Admiss. ambient temp. |
0-40 °C |
| Weight |
4.98 kg |
| Packing unit |
1 |
| Type of speaker |
10" |
