High-Quality PA Speakers
For general stage and professional DJ applications. Excellent workmanship and perfect specifications for bass-reflex speaker systems of high power capability.

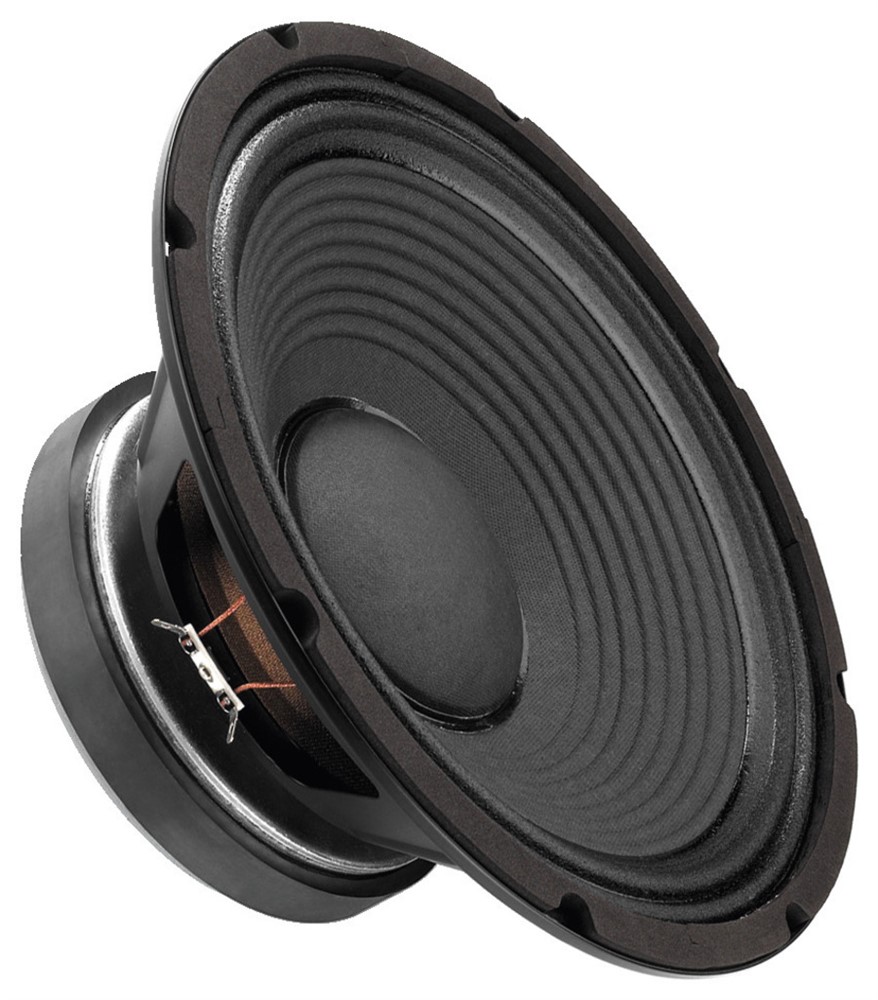

PA bass-midrange speaker, 400 WMAX, 200 WRMS, 8 Ohm
- Very high efficiency and perfect specifications for use in compact full range speaker systems
- Can ideally be combined with mid-high range horns
| Impedance (Z) |
8 Ohm |
| Transmission method |
- |

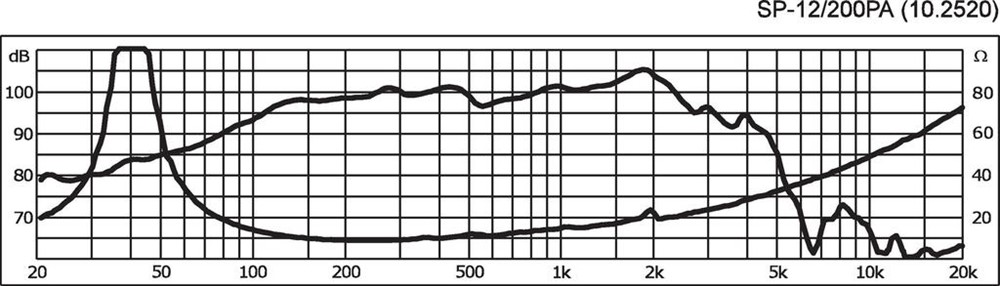

| Frequency range |
f3-5,000 Hz |
| Resonant frequency (fs) |
45 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) |
- |
| Power rating (RMS) |
200 W |
| Peak music power output (MAX) |
400 W |
| Sensitivity |
100 dB/W/m |
| Max. rated SPL |
- |
| Max. voltage |
- |
| Radiation angle, horizontal |
- |
| Radiation angle, vertical |
- |
| Suspension compl. (Cms) |
0.29 mm/N |
| Moving mass (Mms) |
43 g |
| Mech. Q factor (Qms) |
5.20 |
| Electr. Q factor (Qes) |
0.35 |
| Total Q factor (Qts) |
0.33 |
| Equivalent volume (Vas) |
114 l |
| DC resistance (Re) |
6.8 O |
| Force factor (BxL) |
15.40 Tm |
| Voice coil induct. (Le) |
1.2 mH |
| Voice coil diameter |
Ø 78 mm |
| Voice coil former |
Kapton |
| Linear excursion (XMAX) |
± 4 mm |
| Eff. cone area (Sd) |
531 cm2 |
| Magnet weight |
1.8 kg |
| Magnet diameter |
Ø 180 mm |

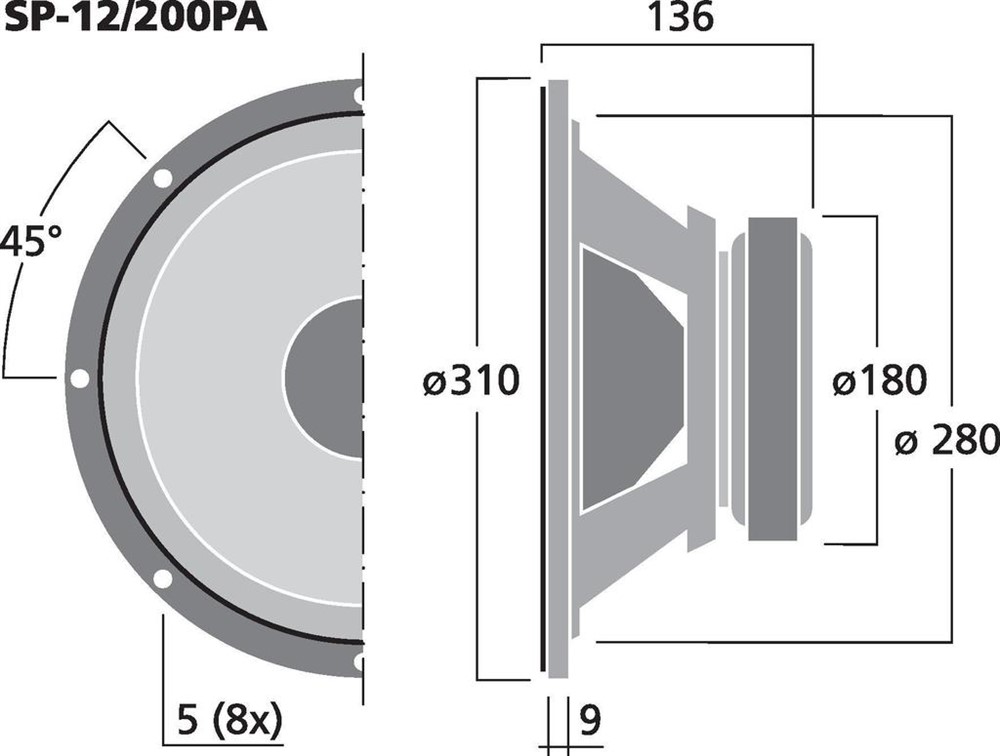

| Mounting cutout |
Ø 280 mm |
| Mounting depth |
125 mm |
| Mounting hole diameter |
- |
| Hole spacing X-axis |
- |
| Hole spacing Y-axis |
- |
| Dimensions |
Ø 310 mm x 136 mm |
| Outside diameter |
Ø 310 mm |
| Width |
Ø 310 mm |
| Height |
- |
| Depth |
136 mm |
| Protective class |
- |
| Admiss. ambient temp. |
0-40 °C |
| Weight |
5.74 kg |
| Packing unit |
1 |
| Type of speaker |
12" |
