5½", 55Wrms, 8ohm
I lager

Vad vill du veta om SPH-130?



A design which has become classic by now and materials which seem to be basic but which are of perfect workmanship, thus allowing for an excellent sound!

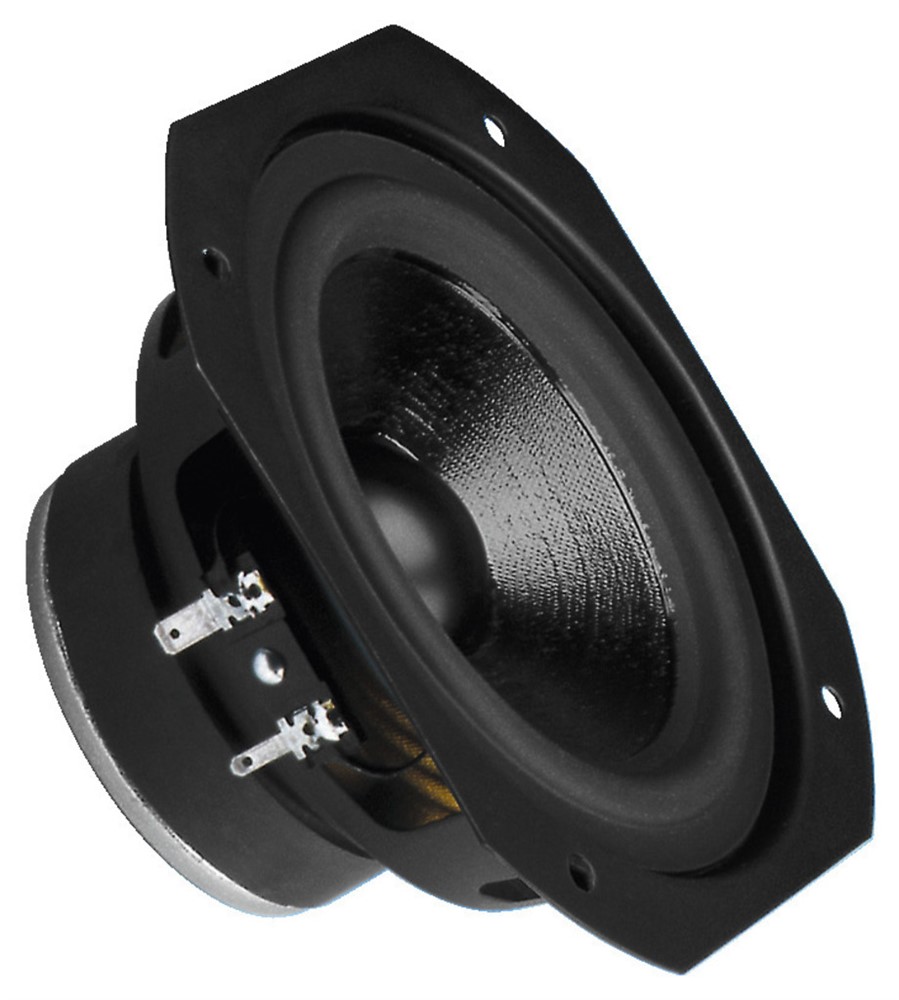

Hi-fi bass-midrange speaker, 80 WMAX, 55 WRMS, 8 Ohm
  • Paper cone with special coating
  • Rubber surround with optimised profile
  • Extra wide and linear radiation range, free of resonance
  • Perfect components for modern 2-way combinations up to D'Appolito arrangements, also for use as a midrange speaker in multi-way speaker systems

Impedance (Z) 8 Ohm
Transmission method -

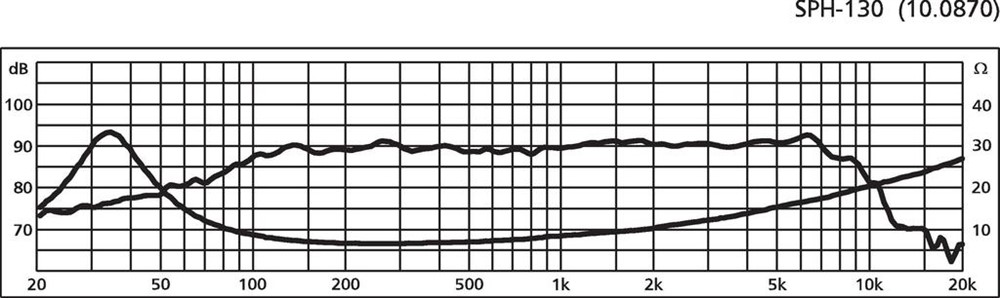

Frequency range f3-6,000 Hz
Resonant frequency (fs) 38 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating (RMS) 55 W
Peak music power output (MAX) 80 W
Sensitivity 89 dB/W/m
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal -
Radiation angle, vertical -
Suspension compl. (Cms) 2.14 mm/N
Moving mass (Mms) 8.2 g
Mech. Q factor (Qms) 1.91
Electr. Q factor (Qes) 0.39
Total Q factor (Qts) 0.32
Equivalent volume (Vas) 22 l
DC resistance (Re) 5.7 O
Force factor (BxL) 5.40 Tm
Voice coil induct. (Le) 0.5 mH
Voice coil diameter Ø 25 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 2 mm
Eff. cone area (Sd) 80 cm2
Magnet weight 230 g
Magnet diameter Ø 72 mm

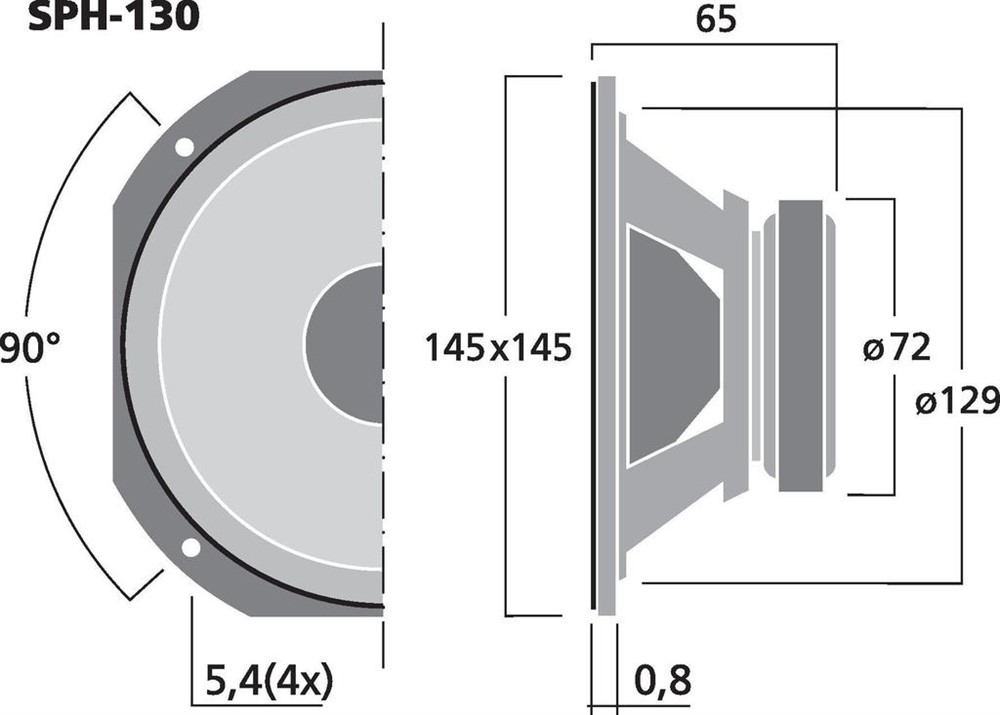

Mounting cutout Ø 129 mm
Mounting depth 64.2 mm
Mounting hole diameter -
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions 145 x 145 x 65 mm
Outside diameter -
Width 145 mm
Height 145 mm
Depth 65 mm
Protective class -
Admiss. ambient temp. 0-40 °C
Weight 0.755 kg
Packing unit 1
Type of speaker 5.5"
