Hi-fi Bass Speakers and Hi-fi Bass-Midrange Speakers
Extra high quality, perfect workmanship and elegant design, with aluminium basket, carbon fibre cone and extra long excursion, an impulsive and deep bass reproduction from a partly surprisingly small size.

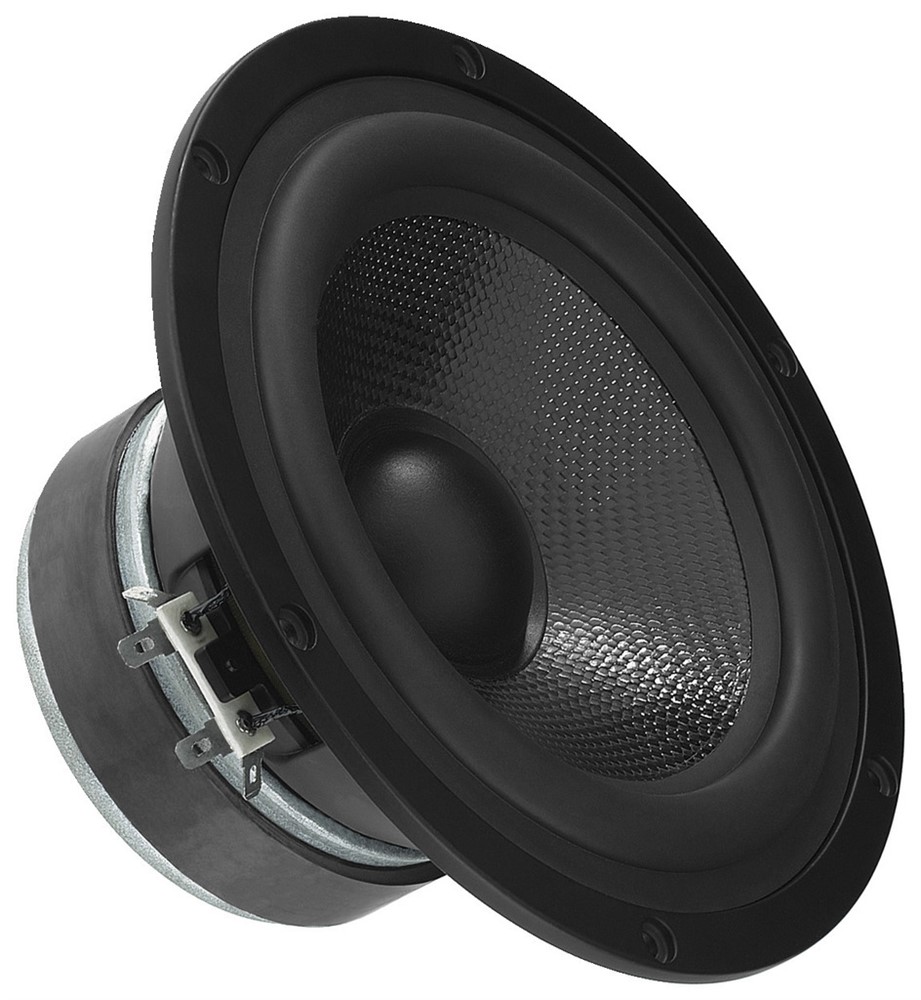

High-end bass-midrange speaker, 120 WMAX, 60 WRMS, 8 Ohm
- Excellently dampened cone
- Extra long excursion
- Low distortion
- Particularly natural reproduction
- Very low limit frequency
- Ideally suited as a bass-midrange speaker in 2-way combinations but only requires small volumes
HOBBY HiFi 02/2012
"Ideally suited for smaller bookshelf speaker systems. With the SPH-170C, MONACOR offers a bass-midrange speaker of very neat workmanship which impresses by a particularly high-quality design."
| Impedance (Z) |
8 Ohm |
| Transmission method |
- |

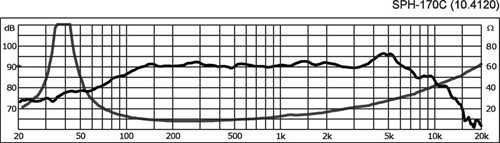

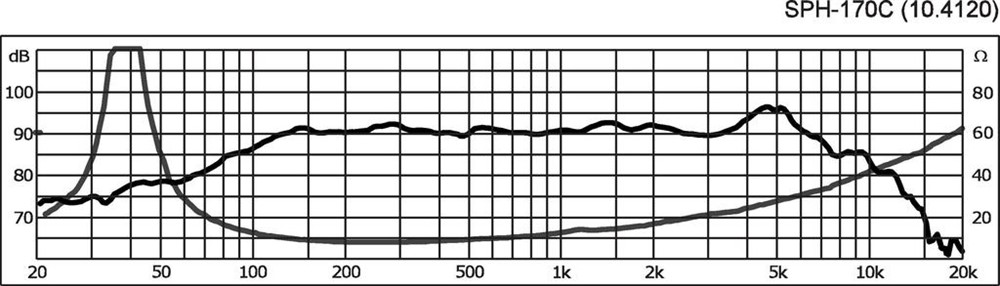

| Frequency range |
f3-3,500 Hz |
| Resonant frequency (fs) |
38 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) |
- |
| Power rating (RMS) |
60 W |
| Peak music power output (MAX) |
120 W |
| Sensitivity |
88 dB/W/m |
| Max. rated SPL |
- |
| Max. voltage |
- |
| Radiation angle, horizontal |
- |
| Radiation angle, vertical |
- |
| Suspension compl. (Cms) |
1.06 mm/N |
| Moving mass (Mms) |
16.43 g |
| Mech. Q factor (Qms) |
7.22 |
| Electr. Q factor (Qes) |
0.27 |
| Total Q factor (Qts) |
0.26 |
| Equivalent volume (Vas) |
24 l |
| DC resistance (Re) |
6 O |
| Force factor (BxL) |
9.44 Tm |
| Voice coil induct. (Le) |
0.8 mH |
| Voice coil diameter |
Ø 37 mm |
| Voice coil former |
Kapton |
| Linear excursion (XMAX) |
± 4 mm |
| Eff. cone area (Sd) |
127 cm2 |
| Magnet weight |
600 g |
| Magnet diameter |
Ø 100 mm |
| Mounting cutout |
Ø 145 mm |
| Mounting depth |
85 mm |
| Mounting hole diameter |
- |
| Hole spacing X-axis |
- |
| Hole spacing Y-axis |
- |

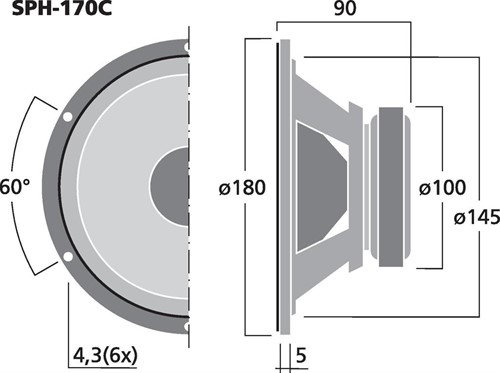

| Dimensions |
Ø 180 mm x 90 mm |
| Outside diameter |
Ø 180 mm |
| Width |
Ø 180 mm |
| Height |
- |
| Depth |
90 mm |
| Protective class |
- |
| Admiss. ambient temp. |
0-40 °C |
| Weight |
1.99 kg |
| Packing unit |
1 |
| Type of speaker |
6.5" |
