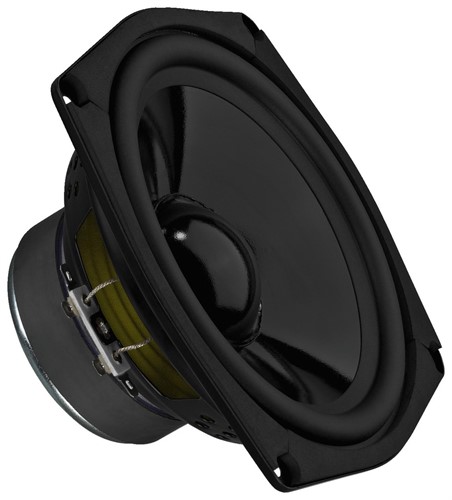

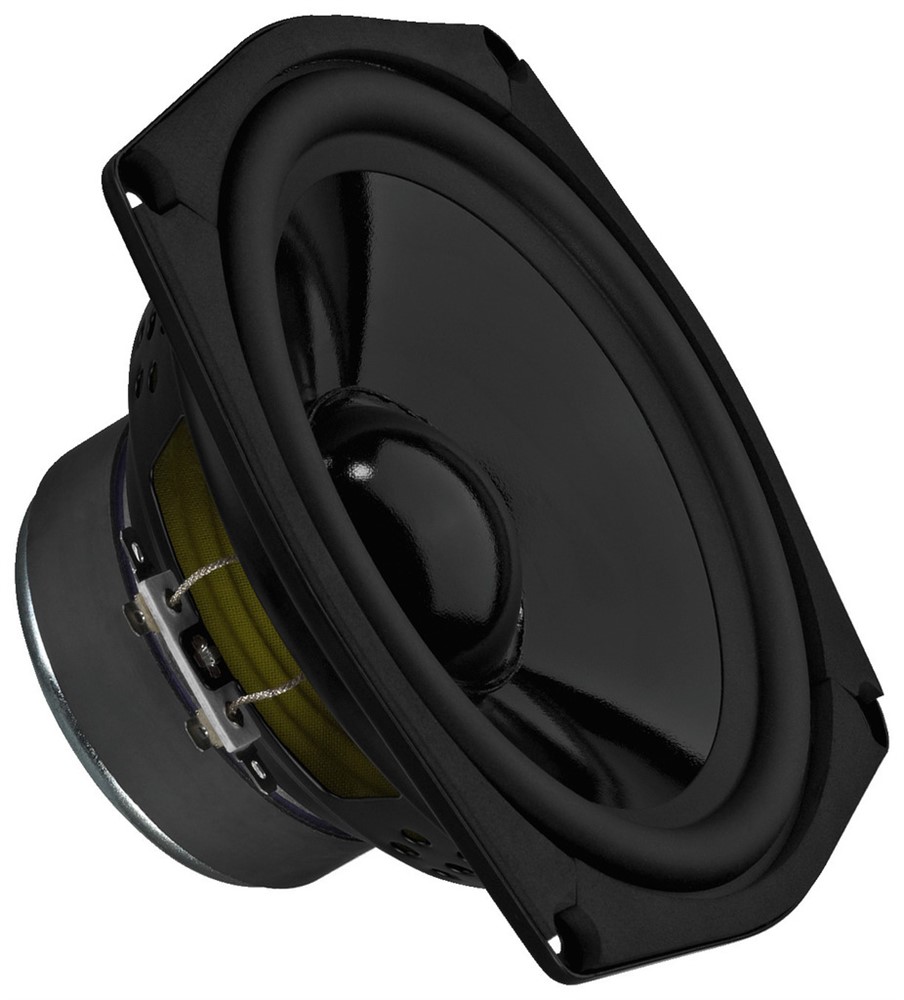

Hi-fi bass-midrange speaker, 150 WMAX, 60 WRMS, 8 Ohm
- Excellent replacement speaker of the same quality as from the original equipment manufacturer
- Coated low-resonance paper cone
- Long-term stable rubber surround
- To be used preferably in closed or transmission line cabinets
Klang+Ton 01/2013
"What a great idea. The Cheap Trick 264 (with SPM-165/8 & DTM-104/8) wants to show that it is possible to actually provide great music at an attractive price ... and with any kind of music programme. It provides a reproduction of a comprehensive musical spectrum which is always a pleasure to listen to. With reliable material and a little care during assembly, you already get an all-round speaker which is absolutely suitable for practical operation."
| Impedance (Z) |
8 Ohm |
| Transmission method |
- |

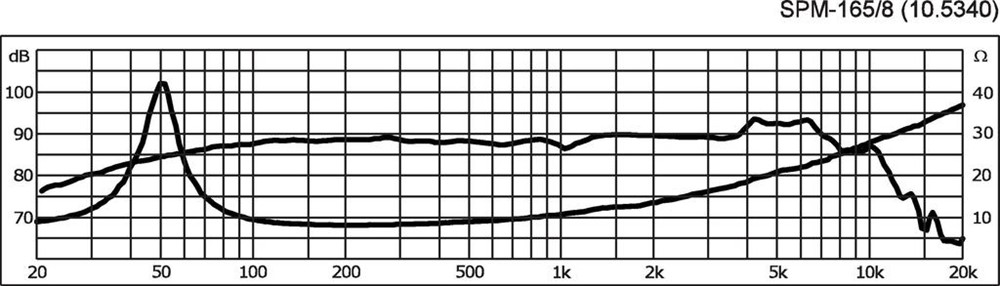

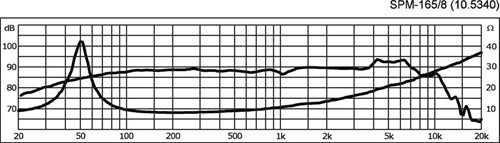

| Frequency range |
f3-5,000 Hz |
| Resonant frequency (fs) |
49 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) |
- |
| Power rating (RMS) |
60 W |
| Peak music power output (MAX) |
150 W |
| Sensitivity |
88 dB/W/m |
| Max. rated SPL |
- |
| Max. voltage |
- |
| Radiation angle, horizontal |
- |
| Radiation angle, vertical |
- |
| Suspension compl. (Cms) |
1.0 mm/N |
| Moving mass (Mms) |
10.3 g |
| Mech. Q factor (Qms) |
2.7 |
| Electr. Q factor (Qes) |
0.67 |
| Total Q factor (Qts) |
0.55 |
| Equivalent volume (Vas) |
33 l |
| DC resistance (Re) |
7.2 O |
| Force factor (BxL) |
5.80 Tm |
| Voice coil induct. (Le) |
0.6 mH |
| Voice coil diameter |
Ø 25.5 mm |
| Voice coil former |
aluminium |
| Linear excursion (XMAX) |
± 3 mm |
| Eff. cone area (Sd) |
140 cm2 |
| Magnet weight |
380 g |
| Magnet diameter |
Ø 80 mm |

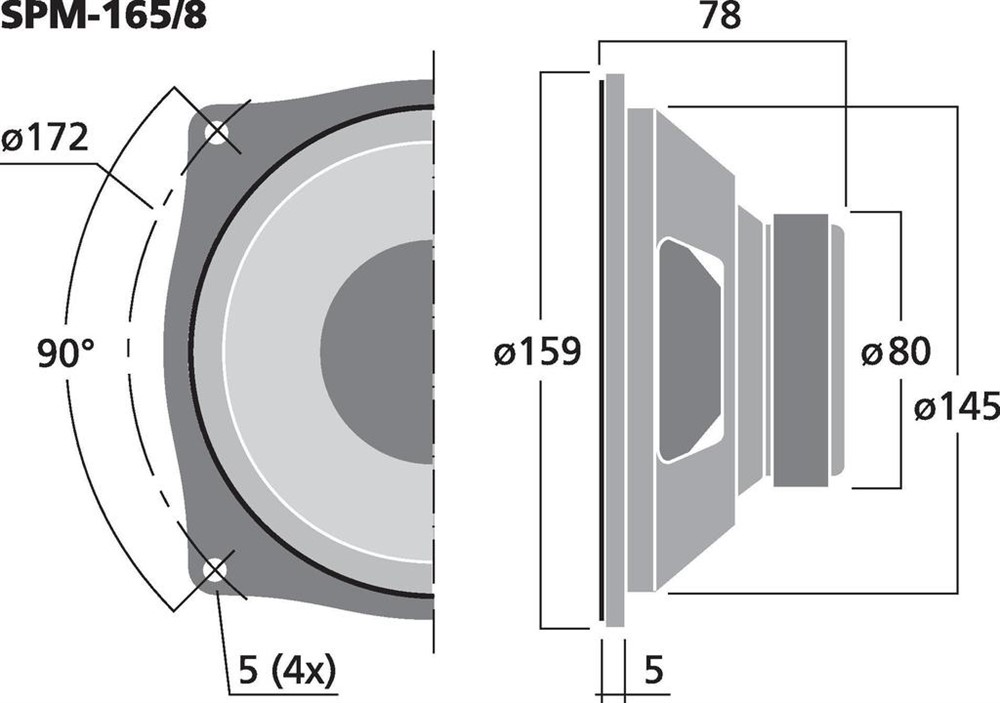

| Mounting cutout |
Ø 145 mm |
| Mounting depth |
73 mm |
| Mounting hole diameter |
Ø 172 mm |
| Hole spacing X-axis |
- |
| Hole spacing Y-axis |
- |
| Dimensions |
Ø 159 mm x 78 mm |
| Outside diameter |
Ø 159 mm |
| Width |
Ø 159 mm |
| Height |
- |
| Depth |
78 mm |
| Protective class |
- |
| Admiss. ambient temp. |
0-40 °C |
| Weight |
0.97 kg |
| Packing unit |
1 |
| Type of speaker |
6.5" |
