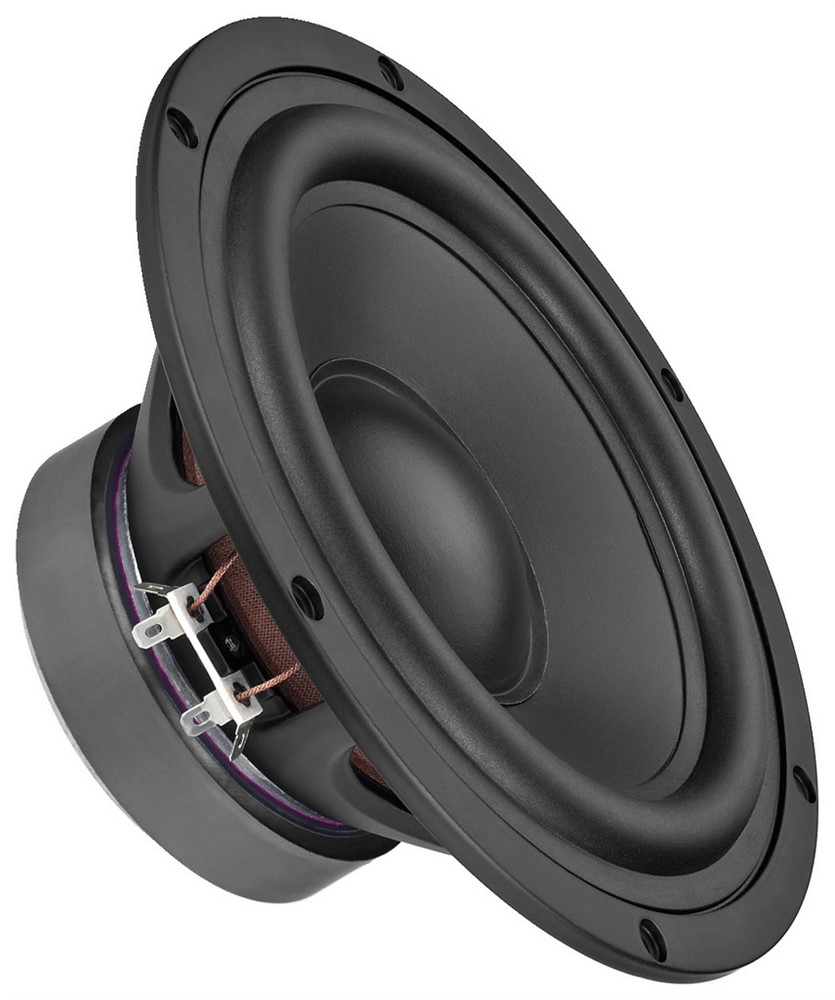

Hi-fi bass speaker, 150 WMax, 100 WRMS, 8 Ohm
- Hi-fi bass speaker of excellent workmanship
- Dampened low-resonance polypropylene cone
- Robust diecast aluminium basket of an elegant design with 6-hole screw connection
- Magnet system with drilled pole core
- Very well-suited for bass-reflex and closed speaker systems
Hobby HiFi 06/2011
"Perfectly linear and well-balanced. Of neat workmanship, an excellent bass-midrange speaker for 2-way applications."
| Impedance (Z) |
8 Ohm |
| Transmission method |
- |

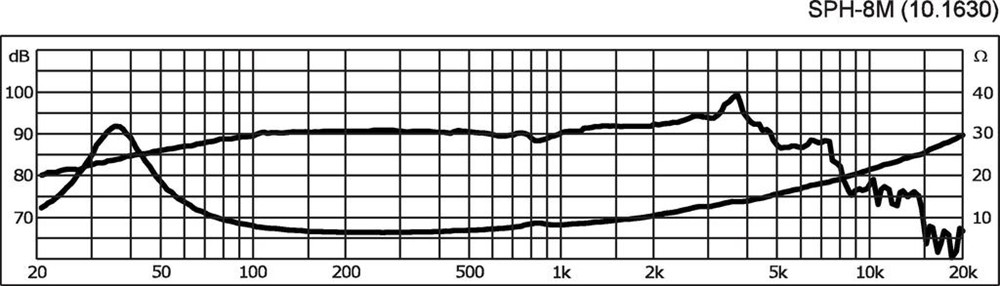

| Frequency range |
f3-2,500 Hz |
| Resonant frequency (fs) |
35 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) |
- |
| Power rating (RMS) |
100 W |
| Peak music power output (MAX) |
150 W |
| Sensitivity |
89 dB/W/m |
| Max. rated SPL |
- |
| Max. voltage |
- |
| Radiation angle, horizontal |
- |
| Radiation angle, vertical |
- |
| Suspension compl. (Cms) |
0.71 mm/N |
| Moving mass (Mms) |
27 g |
| Mech. Q factor (Qms) |
2.26 |
| Electr. Q factor (Qes) |
0.50 |
| Total Q factor (Qts) |
0.41 |
| Equivalent volume (Vas) |
44 l |
| DC resistance (Re) |
6.5 O |
| Force factor (BxL) |
9.01 Tm |
| Voice coil induct. (Le) |
0.78 mH |
| Voice coil diameter |
Ø 38 mm |
| Voice coil former |
aluminium |
| Linear excursion (XMAX) |
± 4.5 mm |
| Eff. cone area (Sd) |
240 cm2 |
| Magnet weight |
790 g |
| Magnet diameter |
Ø 110 mm |

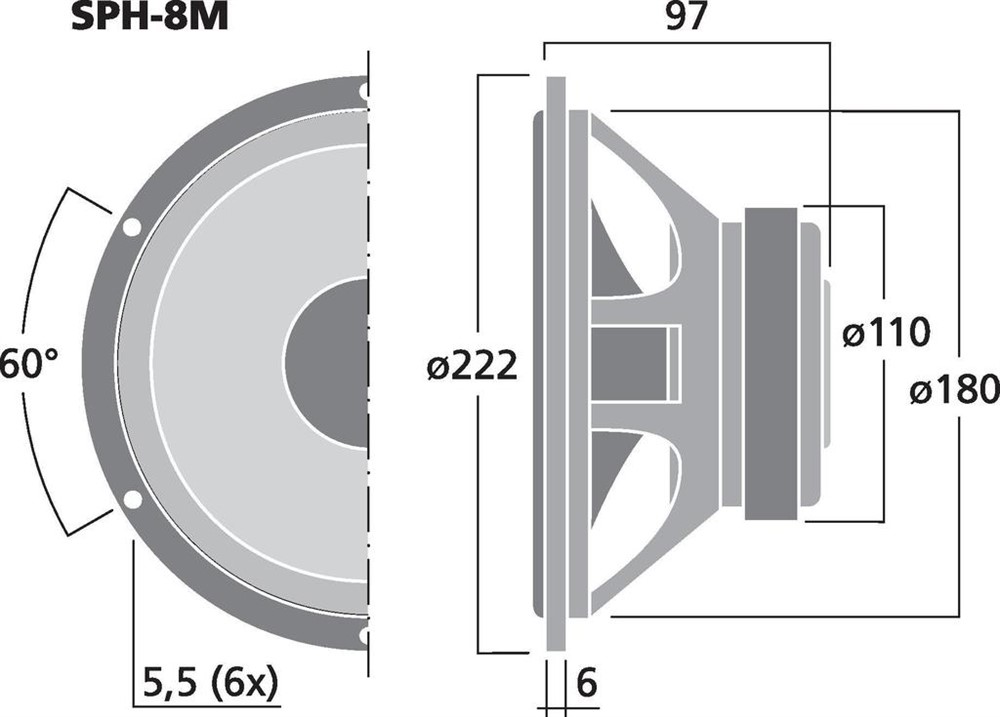

| Mounting cutout |
Ø 180 mm |
| Mounting depth |
91 mm |
| Mounting hole diameter |
- |
| Hole spacing X-axis |
- |
| Hole spacing Y-axis |
- |
| Dimensions |
Ø 222 mm x 97 mm |
| Outside diameter |
Ø 222 mm |
| Width |
Ø 222 mm |
| Height |
- |
| Depth |
97 mm |
| Protective class |
- |
| Admiss. ambient temp. |
0-40 °C |
| Weight |
2.2 kg |
| Packing unit |
1 |
| Type of speaker |
22 cm |
