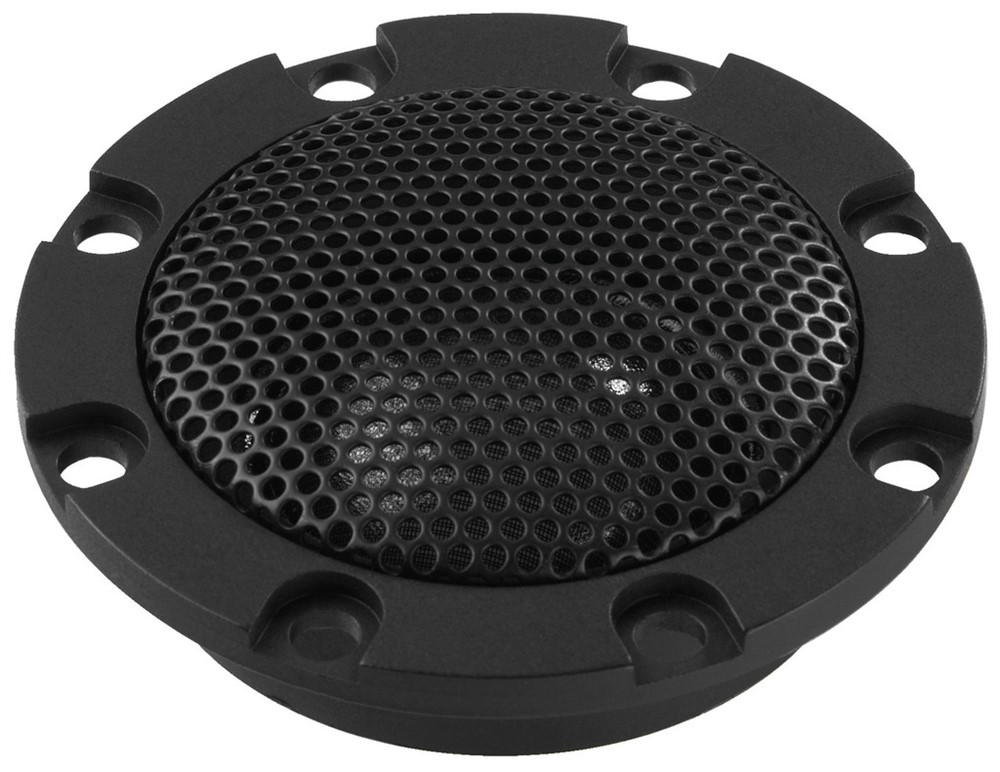

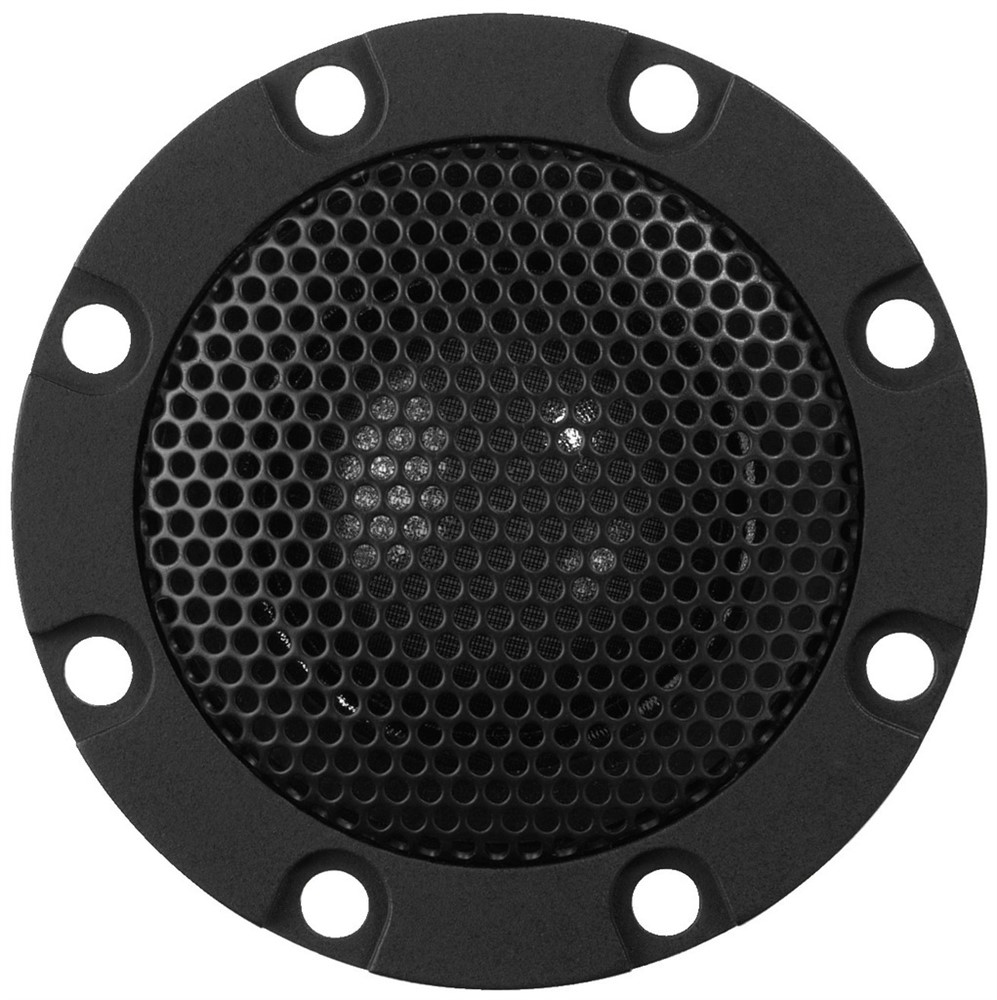

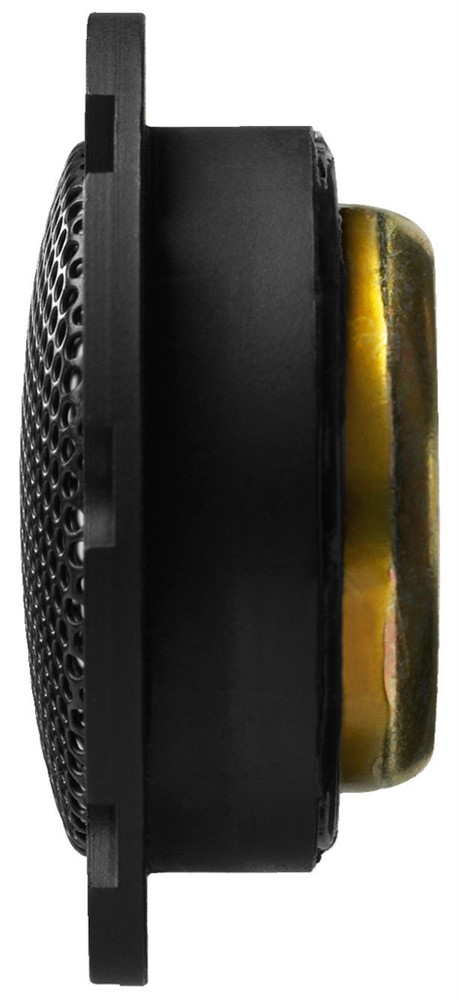

The Tweeter for Perfect Car Hi-fi Applications:
DT-284 "The Dome". This tweeter provides everything expected from a top class tweeter: a sensationally linear frequency response, high level reserves, low crossover frequency, compact size and a distinct and appealing design!

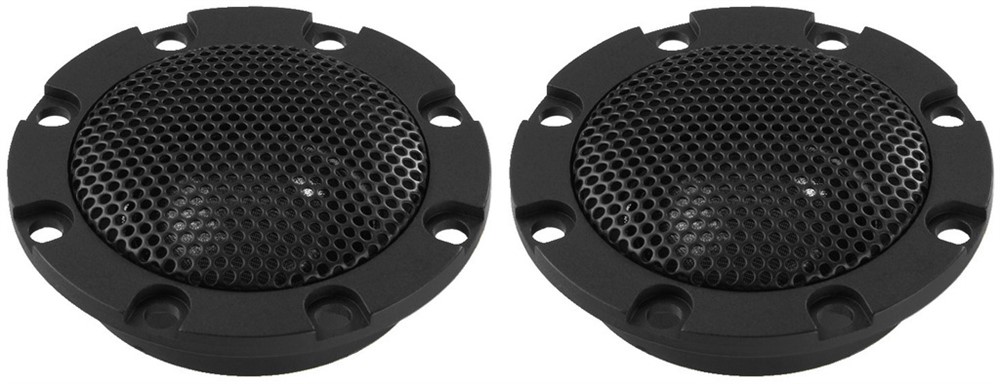

Pair of dome tweeters, 100 WMAX, 60 WRMS, 4 Ohm
- 28 mm silk cone
- Aluminium voice coil
- Neodymium magnet

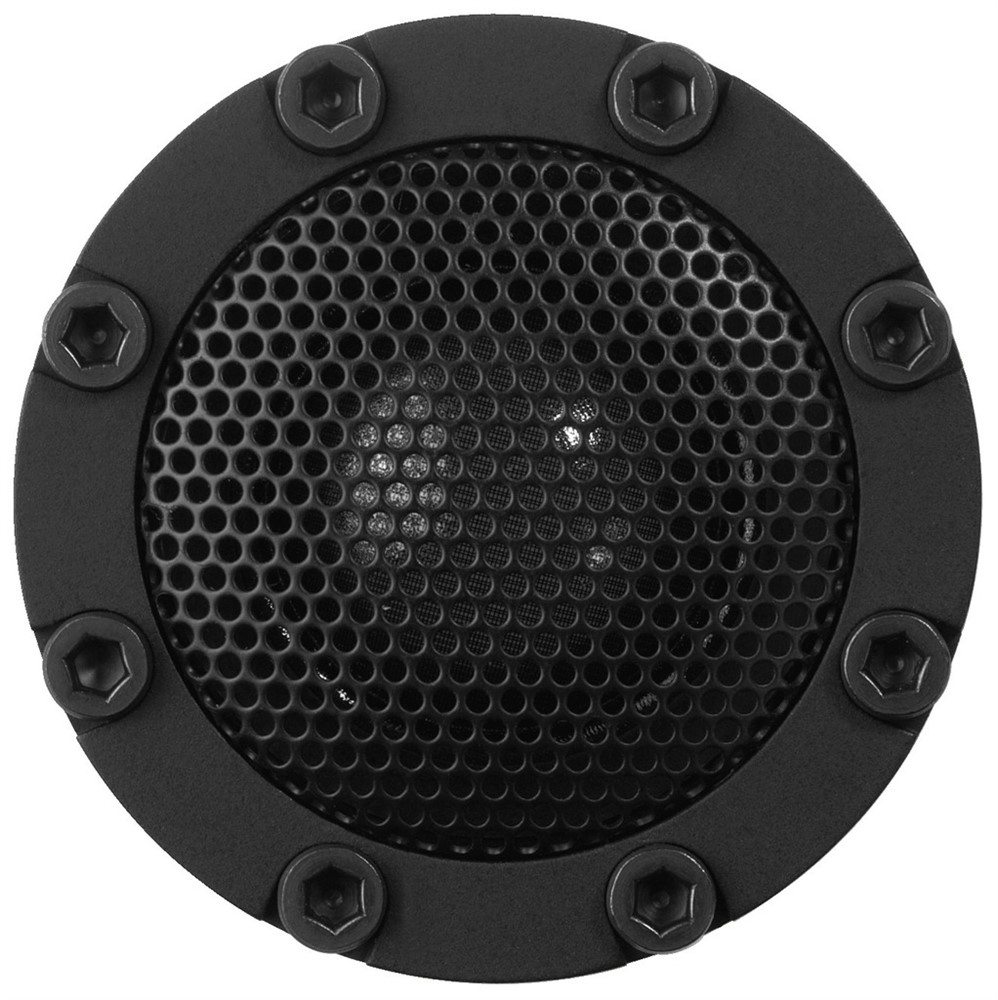

- High-quality ABS housing with 8-hole screw connection
- Perfect sound of extra low distortion
- Highest level stability
- Exceptionally long excursion
A crossover network is required for operation!
Ideal: CDN-2X
| Impedance (Z) |
4 Ohm |
| Transmission method |
- |

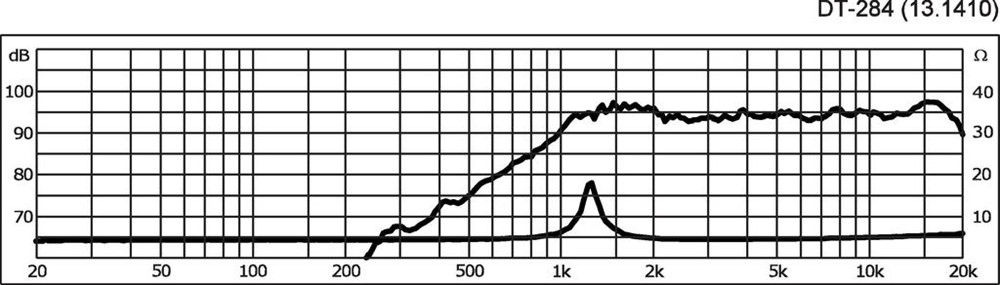

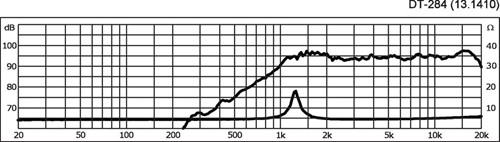

| Frequency range |
fx-20,000 Hz |
| Resonant frequency (fs) |
1,300 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) |
2,000 Hz |
| Power rating (RMS) |
60 W |
| Peak music power output (MAX) |
100 W |
| Sensitivity |
91 dB/W/m |
| Max. rated SPL |
- |
| Max. voltage |
- |
| Radiation angle, horizontal |
- |
| Radiation angle, vertical |
- |
| Suspension compl. (Cms) |
- |
| Moving mass (Mms) |
- |
| Mech. Q factor (Qms) |
- |
| Electr. Q factor (Qes) |
- |
| Total Q factor (Qts) |
- |
| Equivalent volume (Vas) |
- |
| DC resistance (Re) |
- |
| Force factor (BxL) |
- |
| Voice coil induct. (Le) |
- |
| Voice coil diameter |
Ø 28 mm |
| Voice coil former |
- |
| Linear excursion (XMAX) |
- |
| Eff. cone area (Sd) |
- |
| Magnet weight |
- |
| Magnet diameter |
Ø 46 mm |

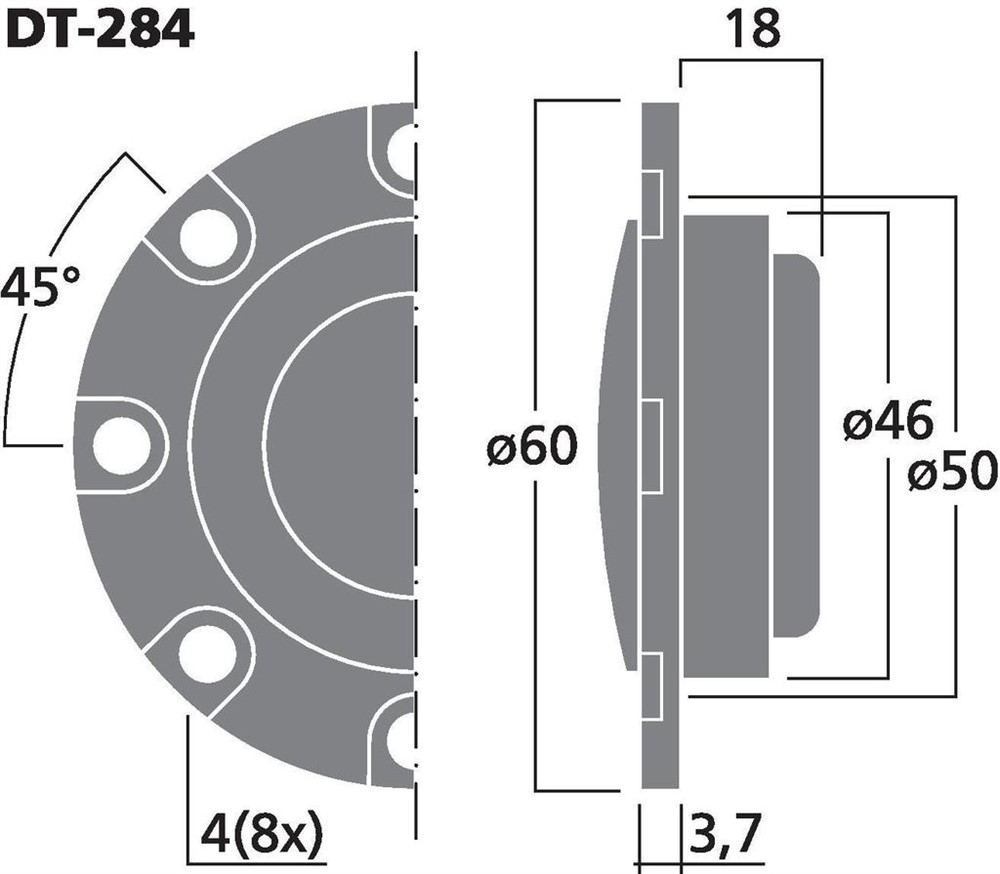

| Mounting cutout |
Ø 50 mm |
| Mounting depth |
18 mm |
| Mounting hole diameter |
- |
| Hole spacing X-axis |
- |
| Hole spacing Y-axis |
- |
| Dimensions |
Ø 60 mm |
| Outside diameter |
Ø 60 mm |
| Width |
Ø 60 mm |
| Height |
- |
| Depth |
21.7 mm |
| Protective class |
- |
| Admiss. ambient temp. |
0-40 °C |
| Weight |
0.18 kg |
| Packing unit |
2 |
| Type of speaker |
- |
