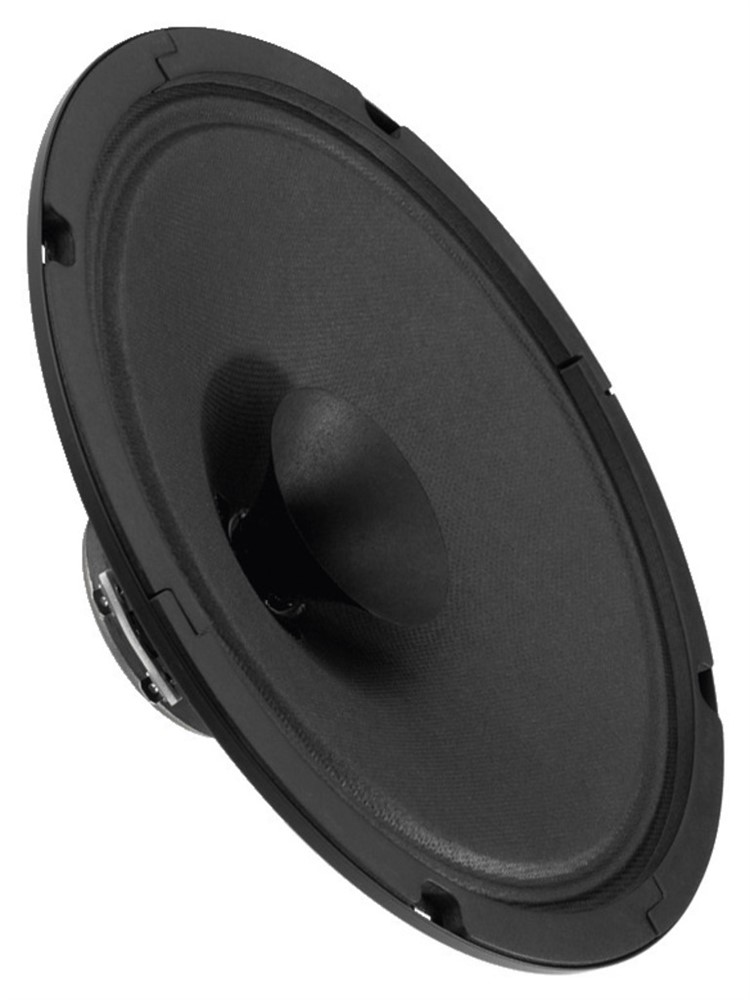

Universal full range speaker, 10 WMAX, 8 WRMS, 8 Ohm
- Dual cone
- For PA applications and other purposes
- Especially for multiple arrangements in column speakers
- Excellent sound quality
Klang+Ton 06/2013
"Built into an open cabinet (Cheap Trick 269), this speaker provides features which are clearly above its price class and can clearly be considered high-end. Like all the other full range speakers of this design, it also needs a break-in period to demonstrate its full capability. After about 6 months, you wouldn't give this speaker back, not even for far more than you paid for it."
| Impedance (Z) |
8 Ohm |
| Transmission method |
- |
| Frequency range |
f3-18,000 Hz |
| Resonant frequency (fs) |
100 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) |
- |
| Power rating (RMS) |
8 W |
| Peak music power output (MAX) |
10 W |
| Sensitivity |
94 dB/W/m |
| Max. rated SPL |
- |
| Max. voltage |
- |
| Radiation angle, horizontal |
- |
| Radiation angle, vertical |
- |
| Suspension compl. (Cms) |
- |
| Moving mass (Mms) |
- |
| Mech. Q factor (Qms) |
- |
| Electr. Q factor (Qes) |
- |
| Total Q factor (Qts) |
- |
| Equivalent volume (Vas) |
- |
| DC resistance (Re) |
- |
| Force factor (BxL) |
- |
| Voice coil induct. (Le) |
- |
| Voice coil diameter |
- |
| Voice coil former |
- |
| Linear excursion (XMAX) |
- |
| Eff. cone area (Sd) |
- |
| Magnet weight |
79 g |
| Magnet diameter |
Ø 60 mm |
| Mounting cutout |
Ø 180 mm |
| Mounting depth |
57 mm |
| Mounting hole diameter |
- |
| Hole spacing X-axis |
- |
| Hole spacing Y-axis |
- |

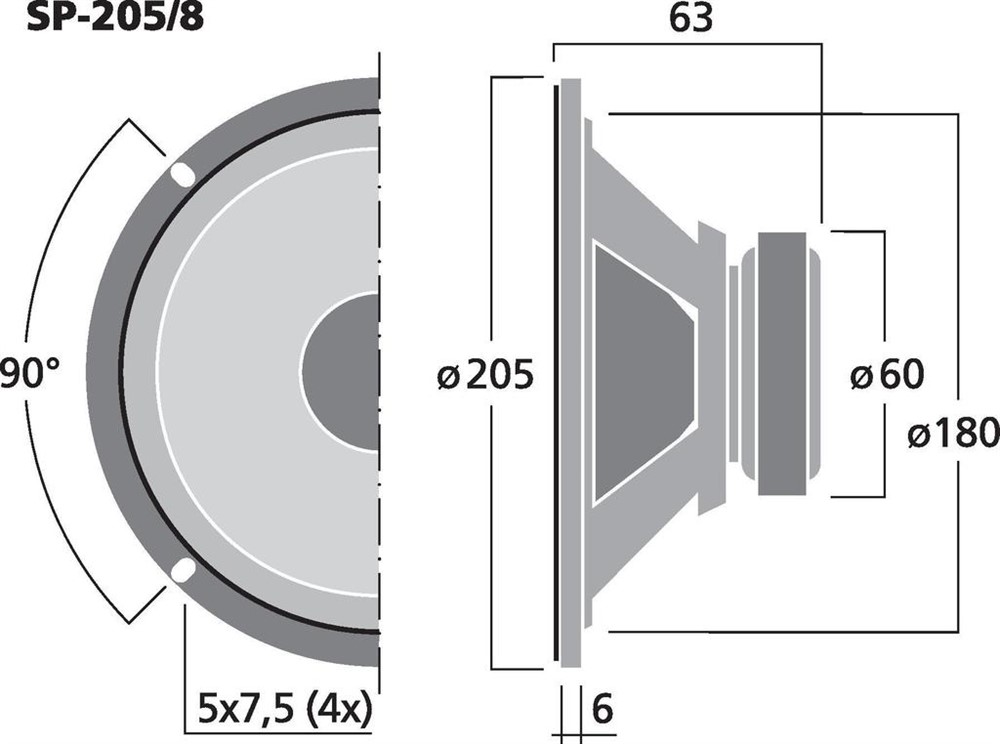

| Dimensions |
Ø 205 mm x 63 mm |
| Outside diameter |
Ø 205 mm |
| Width |
Ø 205 mm |
| Height |
- |
| Depth |
63 mm |
| Protective class |
- |
| Admiss. ambient temp. |
0-40 °C |
| Weight |
0.379 kg |
| Packing unit |
1 |
| Type of speaker |
8" |
