Overhead electret microphone
Most compact size, but maximum sound!

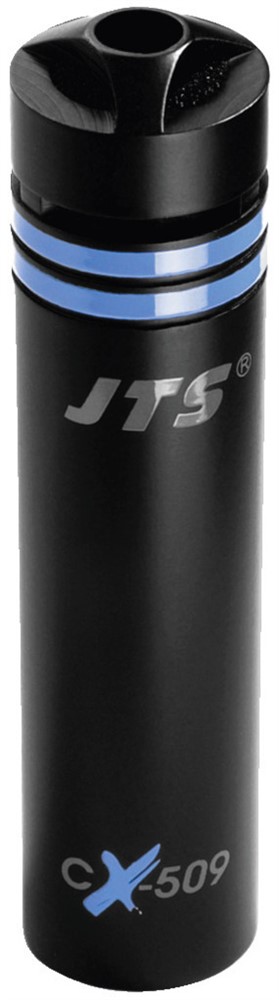

The CX-509 is an overhead microphone of the extra class with excellent sound characteristics.
The strong point of this microphone is the sound pick-up of hi-hats/cymbals as well as various percussion instruments. Acoustic instruments, e.g. guitars/violins, flutes or choir voices also benefit from the quality of this microphone.
The CX-509 allows for an unobtrusive positioning due to the small dimensions.
The robust body with integrated phantom power supply adapter is also suitable for severe conditions on stage.

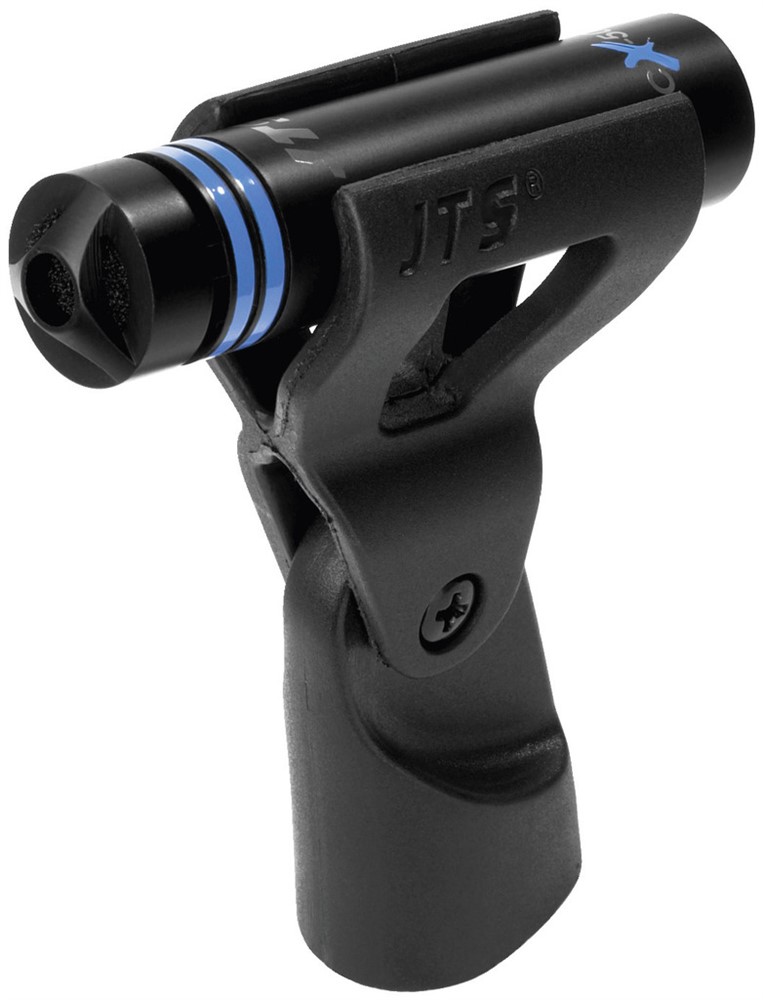

Supplied with microphone holder.
| Description | overhead microphone |
| Version | - |
| Transmission method | cable |
| Polar pattern | cardioid |
| System | electret/cardioid |
| Carrier frequency range | - |
| Transmitting power | - |
| Power supply | - |
| Operating time | - |
| Audio frequency range | 20-20,000 Hz |
| Nominal impedance | 220 O ± 30% |
| Sensitivity | 5.6 mV/Pa |
| S/N ratio | - |
| Max. sound pressure | 130 dB |
| Power supply | 48 V phantom power |
| Gooseneck length | - |
| Housing material | metal |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | - |
| Weight | 60 g |
| Cable | - |
| Connection | XLR, bal. |
