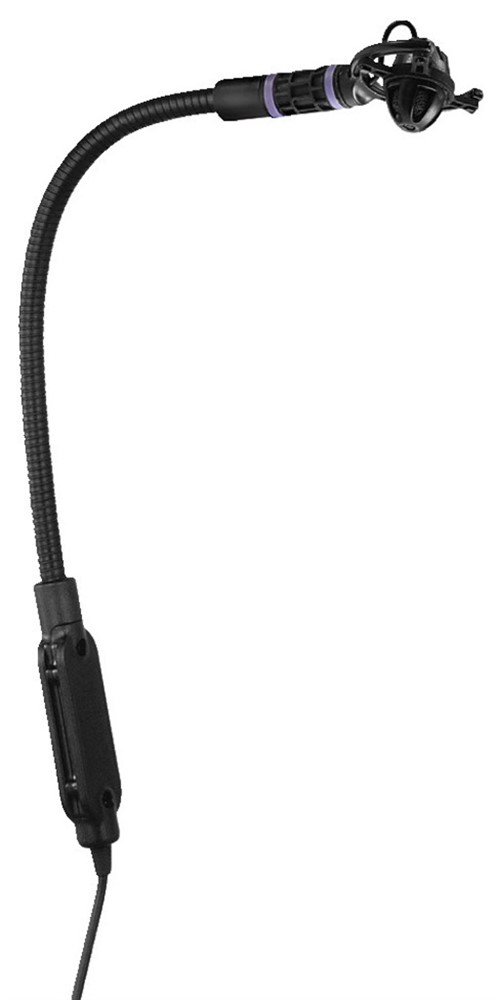

Electret instrument microphone
A microphone with a special quick-acting holder for the sound pick-up of accordions, pianos or wind instruments.
The well-balanced frequency response guarantees a genuine and brilliant sound which makes playing music a real pleasure.
Due to the gooseneck, the cartridge which isolates the structure-borne noise allows a very flexible alignment.
Supplied in a robust transport case with windshield.
This item is also available as cable-connected version CX-516.
Both of the instrument microphones (CX-516W and CX-508W) are perfectly suitable for the connection to the pocket transmitters of the UHF PLL systems from JTS.
| Description | instrument microphone |
| Version | - |
| Transmission method | cable |
| Polar pattern | supercardioid |
| System | electret |
| Carrier frequency range | - |
| Transmitting power | - |
| Power supply | - |
| Operating time | - |

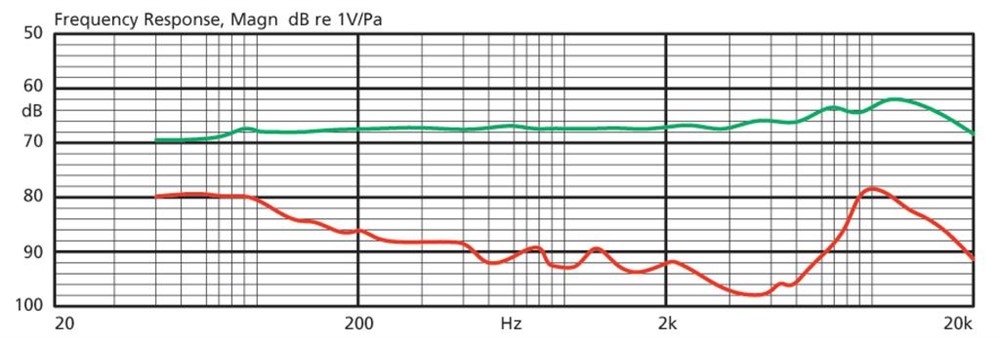

| Audio frequency range | 20-20,000 Hz |
| Nominal impedance | 220 O ± 30% |
| Sensitivity | 4.5 mV/Pa |
| S/N ratio | - |
| Max. sound pressure | 130 dB |
| Power supply | pocket transmitter from JTS |
| Gooseneck length | - |
| Housing material | plastic |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | - |
| Weight | 55 g |
| Cable | 1.4 m |
| Connection | 4-pole mini XLR |
