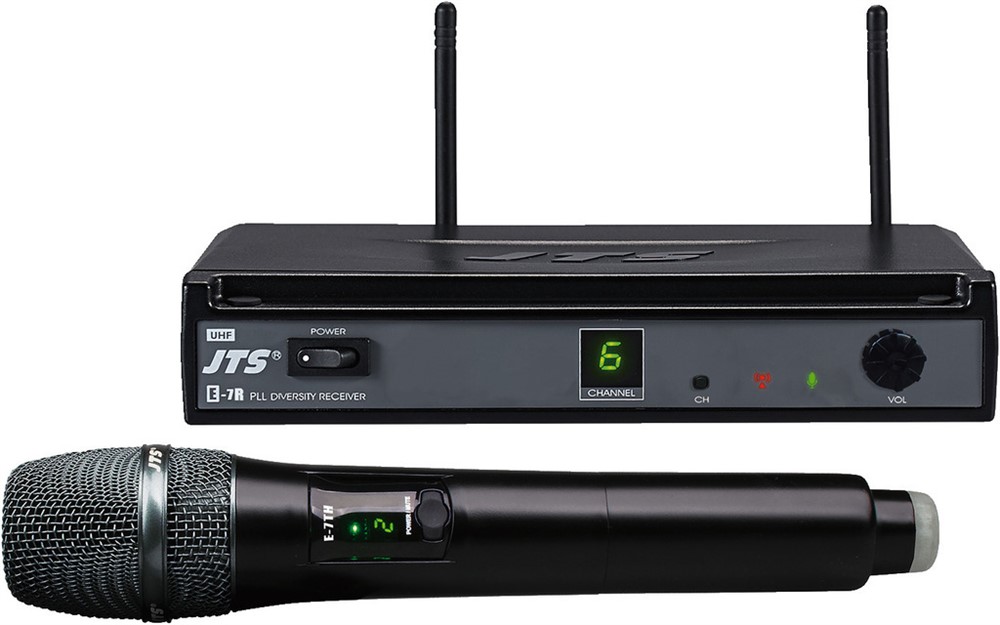

UHF PLL audio transmission set,
consisting of:
- Diversity UHF PLL receiver E-7R/5
- Dynamic hand-held UHF PLL transmitter E-7TH/5
For specifications, please refer to the individual items.
There are restrictions or requirements within the EU!
Please read the notes regarding wireless systems in the section “IMPORTANT INFORMATION”!
| General information | - |
| Description | UHF PLL audio transmission set |
| Carrier frequency range | 518-542 MHz |
| Audio frequency range | 40-18,000 Hz |
| Channels | 1 |
| THD | < 0.6% |
| Dynamic range | > 100 dB |
| RF S/N ratio | - |
| Operating time | - |
| Admiss. ambient temp. | 0-40 °C |
| Power supply | - |
| Dimensions | - |
| Total weight | - |
| Connections | - |
| Specifications transmitter | - |
| Transmitting power | - |
| Operating range | - |
| Power supply transmitter | 2 x batt. AA size, alkaline (not supplied) |
| Width transmitter | - |
| Height transmitter | - |
| Depth transmitter | - |
| Weight transmitter | - |
| Connections transmitter | - |
| Specifications receiver | - |
| Audio signal receiver | 180 mV jack |
| Power supply receiver | via encl. power supply |
| Width receiver | 221 mm |
| Height receiver | 40 mm |
| Depth receiver | 152 mm |
| Weight receiver | - |
| Connections receiver | 1 x 6.3 mm jack, bal. |
