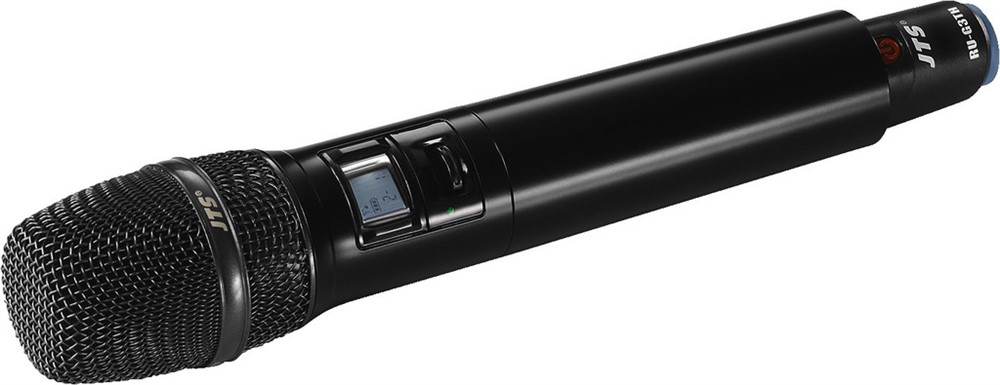

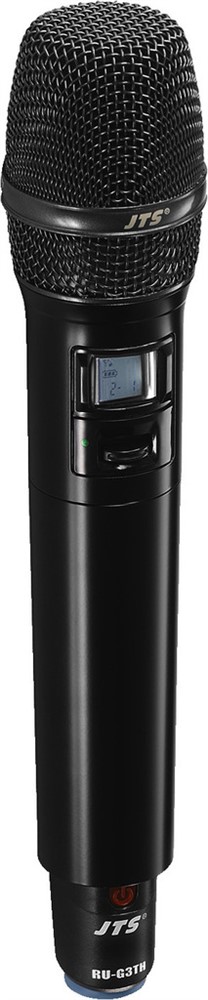

Hand-held UHF PLL transmitter with condenser cartridge
- Bandwidth: 36 MHz
- 6 groups, each with up to 22 compatible preset channels
- 1,441 selectable individual frequencies
- REMOSET ULTRASONIC technology for receiver/transmitter synchronisation
- Pilot tone squelch and noise mute
- Lock function/mute function
- Special design to reduce handling noise, structure-borne noise and acoustic feedback
- Backlit LCD for indicating battery status and low battery alert
- Switchable transmitting power
There are restrictions or requirements within the EU!
Please read the notes regarding wireless systems in the section “IMPORTANT INFORMATION”!
| Description | hand-held microphone |
| Version | - |
| Transmission method | wireless |
| Polar pattern | cardioid |
| System | condenser |
| Carrier frequency range | 506-542 MHz |
| Transmitting power | 10/50 mW |
| Power supply | 2 x batt. AA size, alkaline (not supplied) |
| Operating time | - |
| Audio frequency range | 50-18,000 Hz |
| Nominal impedance | - |
| Sensitivity | - |
| S/N ratio | - |
| Max. sound pressure | 140 dB |
| Power supply | - |
| Gooseneck length | - |
| Housing material | plastic |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | ?50 mm x 253 mm |
| Weight | 780 g |
| Cable | - |
| Connection | - |
