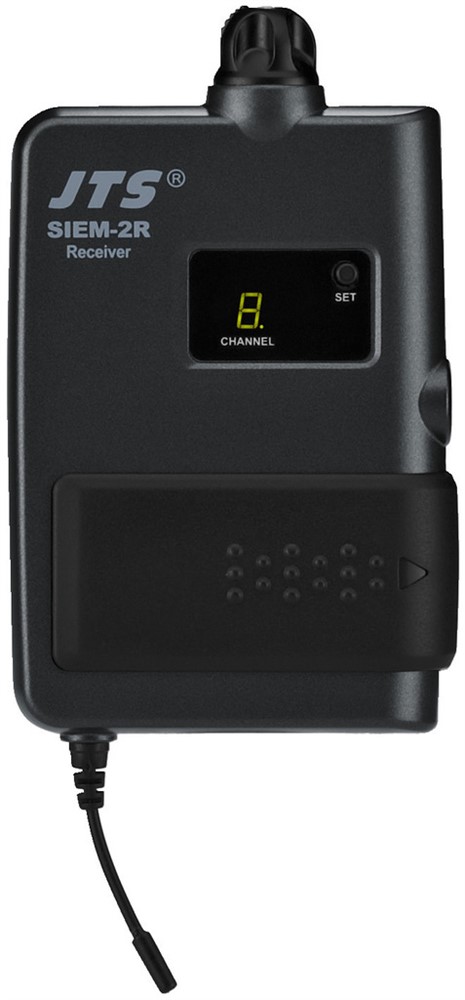

Mono UHF PLL in-ear monitoring receiver
For extending the in-ear monitoring system SIEM-2/5. The receiver features a switchable limiter to protect the hearing in case of excessive volume levels. An additional wired signal can be inserted via a separate adjustable mic/line input. This turns the receiver into a multi-purpose unit. Thus, it can also be used as a portable mono headphone amplifier, even without a radio signal.
Phantom power supply of +4 V is available for inserting an optional electret ambient microphone via the wired input. A belt clip made of spring steel provides a secure fit. Due to the impact-proof plastic housing, it is also suitable for severe conditions on stage. A visual warning indicates low battery status.
| General information | - |
| Description | in-ear monitoring receiver |
| Carrier frequency range | 518-542 MHz |
| Audio frequency range | 40-18,000 Hz |
| Channels | - |
| THD | - |
| Dynamic range | > 80 dB |
| RF S/N ratio | - |
| Operating time | > 8 h |
| Admiss. ambient temp. | 0-40 °C |
| Power supply | - |
| Dimensions | - |
| Total weight | - |
| Connections | - |
| Specifications transmitter | - |
| Transmitting power | - |
| Operating range | - |
| Power supply transmitter | - |
| Width transmitter | - |
| Height transmitter | - |
| Depth transmitter | - |
| Weight transmitter | - |
| Connections transmitter | - |
| Specifications receiver | - |
| Audio signal receiver | - |
| Power supply receiver | 2 x batt. AA size, alkaline (not supplied) |
| Width receiver | 75 mm |
| Height receiver | 160 mm |
| Depth receiver | 32 mm |
| Weight receiver | 83 g |
| Connections receiver | 6.3 mm stereo jack |
