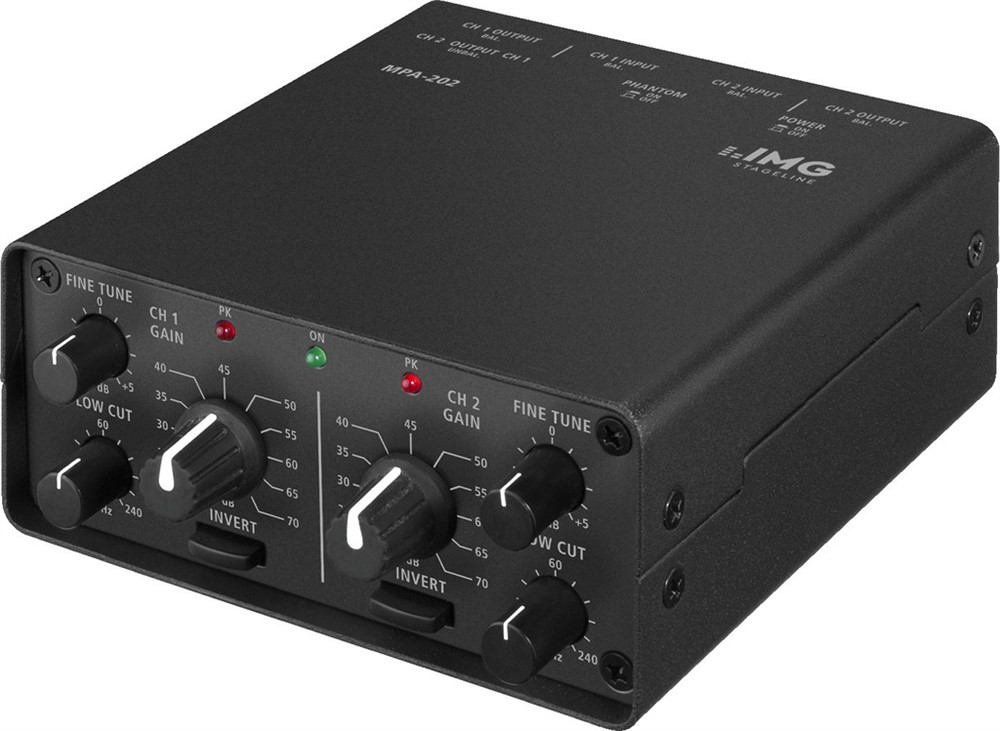

2-kanals lågbrusig mikrofonförstärkare

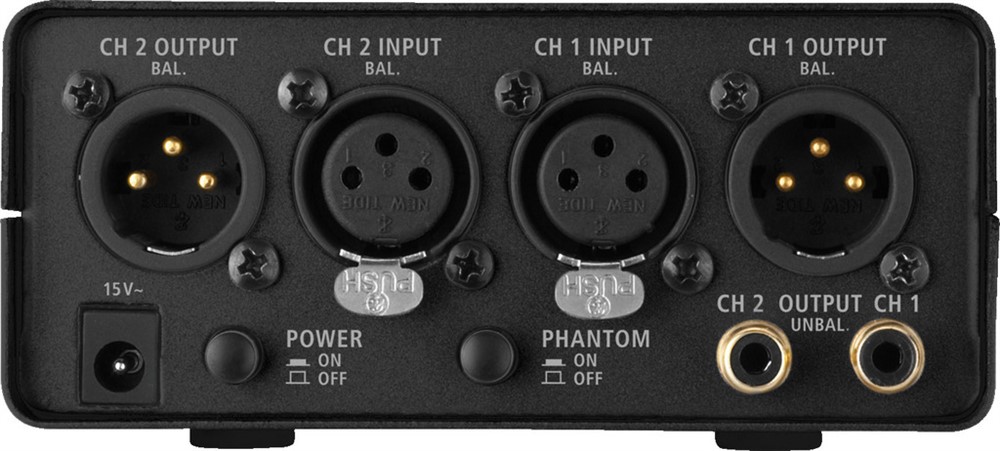

- 2 balanserade XLR-mikrofoningångar.
- Förstärkningskontroll, 11 steg, 20-70dB.
- 2 nivåkontroller ± 5dB.
- LED grön/röd som indikerar drift/toppvärde.
- 12V fantommatning kan slås på vid behov.
- Mikrofon phase kan kopplas om för varje kanal.
- Steglöst low cut filter 15-240Hz.
- Subsonicfilter 15Hz, 18dB/oktav.
- 2 balanserade XLR-lineutgångar.
- 2 obalanserade RCA-lineutgångar.
| Description | microphone preamplifier |
| Frequency range | 20-20,000 Hz |
| Control range | - |
| Control frequencies | - |
| Input signal | - |
| Input sensitivity | 0.16-150 mV switchable |
| Input impedance | 4.4 kO (bal.)
2.2 kO (unbal.) |
| Output signal | 1-14 V (line, bal.) 1-7 V (line, stereo) |
| Output impedance | 100 O/600 O |
| Gain | 15-75 dB |
| Phantom power | - |
| Compression | - |
| Gate ratio | - |
| Crossover frequency | 15-240 Hz, 6 dB/oct. (low cut), 15 Hz, 18 dB/oct. (subsonic) |
| High-pass filter | - |
| Low cut | 100 Hz |
| Transmission ratio | - |
| S/N ratio | > 68 dB, unweighted > 87 dB, weighted |
| Channel separation | - |
| THD | < 0.01% |
| Admiss. ambient temp. | 0-40 °C |
| Power supply | via encl. plug-in power supply |
| Dimensions | 116 x 55 x 135 mm |
| Weight | 980 g |
| Inputs | 2 x XLR |
| Outputs | 2 x XLR
2 x RCA |
| Other features | - |
